Product Overview

The CQF fluoroplastic magnetic drive pump is a sealed centrifugal pump specifically designed for the safe transfer of corrosive media. All wetted parts are made of reinforced polypropylene (PP) injection-molded, significantly enhancing corrosion resistance and expanding its application range. This pump is resistant to most organic and inorganic acids, bases, and salts, suitable for outdoor atmospheric exposure, and offers excellent stress corrosion cracking resistance. It is an ideal choice for handling corrosive chemical liquids without leakage.

Model Designation

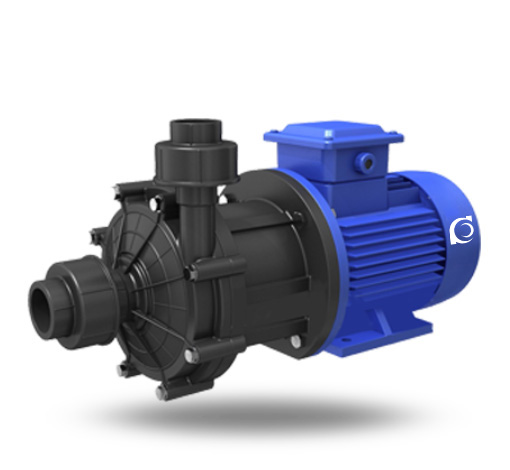

CQF Fluoroplastic Magnetic Pump type

Key Features

  • Magnetic Drive Design: Utilizes a fully static sealing system to ensure zero leakage operation.

  • Excellent Corrosion Resistance: Reinforced polypropylene components make it suitable for a variety of corrosive media.

  • Low Noise Operation: Compact design reduces operating noise.

  • Environmental Safety: Ideal for the transfer of flammable, toxic, and corrosive liquids.

  • High Safety and Reliability: Especially suitable for applications where leak prevention and low noise are critical.

Engineering Overview

The CQF magnetic drive pump uses the principle of permanent magnetic coupling, replacing dynamic mechanical seals with a static sealing system. All wetted parts are fully enclosed, eliminating the risk of leakage or seepage typically associated with mechanical seals. This design ensures safe, clean, and reliable operation when transferring hazardous or corrosive liquids.

Typical Applications

  • Corrosive, Volatile, Toxic, Flammable, and Explosive Liquids: Widely used for the safe transfer of such liquids.

  • Leakage Prevention: Ideal for applications where leak prevention and environmental protection are critical, and stable low-noise operation is required.

  • Specialized Industries: Commonly used in chemical, pharmaceutical, food, and energy industries.

System Configuration

The CQF fluoroplastic magnetic drive pump system consists of the following components:

  • Magnetic Coupling Drive Assembly

  • Reinforced Polypropylene Pump Housing and Wetted Parts

  • Self-Lubricating Sliding Bearing System, Cooled by the Pumped Media

  • Fully Enclosed Static Sealing Structure

Components and Supply

  • Pump Housing: Made of reinforced polypropylene (PP), offering exceptional corrosion resistance.

  • Drive System: Permanent magnetic coupling design ensures leak-free drive.

  • Electrical Control System: Includes an intelligent controller for comprehensive system protection.

  • Bearing System: Self-lubricating sliding bearings, cooled by the conveyed media.

Technical Service

  • 24/7 customer service and technical support are available.

  • Regular maintenance and fault diagnosis services to ensure long-term, stable operation of the pump system.

  • Custom solutions based on specific customer needs, with tailored pump system configurations.

Operating Conditions

  • Dry Running is Prohibited: Bearing lubrication and cooling depend on the flowing medium.

  • Ambient Temperature: ≤40°C

  • Motor Temperature Rise: ≤75°C

  • Maximum Working Pressure: ≤1.6 MPa

  • Maximum Suction Pressure: ≤0.2 MPa

  • Liquid Viscosity: ≤30 × 10⁻⁶ m²/s

  • Liquid Density: ≤1600 kg/m³

  • Media Requirement: Free of hard particles and fibers

Service Conditions

  • The pump is suitable for normal operating conditions, ensuring the proper flow and pressure output.

  • Regular checks on the sealing performance of the pump to ensure no leakage.

  • All fasteners must be securely tightened before use to ensure safety and stability.

Protection Features

  • Overload Protection: Prevents damage to the pump during overload operation.

  • Overheating Protection: Automatically stops the motor when the temperature exceeds preset limits to prevent overheating.

  • Low Liquid Level Protection: Automatically detects liquid levels to prevent dry running.

Selection Criteria

When selecting the CQF fluoroplastic magnetic drive pump, the following standards should be considered:

  • Medium Type: Select a pump suitable for the characteristics of the medium being transferred.

  • Operating Environment: Choose a model suitable for indoor or outdoor use, based on the installation environment.

  • Flow and Head Requirements: Choose the appropriate flow and head capacity according to the system requirements.

Specifications & Installation

Outline Drawing

CQF Fluoroplastic Magnetic Pump Structure Diagram

Performance Data

No.
Part name
No.
Part name
1
Shaft sleeve
6
Rotary ring
2
Inner magnetic assembly
7
Pump shaft
3
Containment shell
8
Stationary ring
4
Outer magnetic assembly
9
Thrust ring
5
Pump casing
10
Support frame

Performance Parameters

Model
Port size (mm)
Flow
(m³/h)
Head
(m)
NPSHr
(m)
Motor power
(kW)
Speed
(r/min)
Power supply voltage
(V)
Inlet
Outlet
10CQF-3
10
8
0.9
3
7.8
0.010
2900
220
14CQF-5
14
10
1.2
5
7.0
0.12
2900
220/380
16CQF-8
16
10
1.8
8
6.0
0.18
2900
220/380
20CQF-12
20
15
2.5
12
6.0
0.37
2900
220/380
25CQF-15
25
20
5.4
15
5.0
1.1
2900
380
32CQF-15
32
25
6.5
15
6.0
1.1
2900
380
32CQF-25
32
25
4.8
25
5.5
1.1
2900
380
40CQF-20
40
32
10.8
20
3.5
2.2
2900
380
50CQF-25
50
40
12.5
25
3.5
3.0
2900
380
50CQF-32
50
40
12.5
32
3.5
4.0
2900
380
65CQF-32
65
50
25
32
4.0
7.5
2900
380

OEM & Custom

Chaodun Pump provides OEM/ODM customization for CQF magnetic pumps, including flow, head, voltage, and material configurations (PVDF, PTFE, RPP). All models meet ISO9001 and CE standards and are suitable for chemical and industrial export applications.

FAQs

  1. Q1: What is the CQF Fluoroplastic Magnetic Pump used for?
    It is used for transferring acids, alkalis, and other corrosive chemical liquids.
  2. Q2: What materials are used for the pump?
    The wetted parts are made from reinforced polypropylene (RPP) for corrosion and wear resistance.
  3. Q3: Can it run dry?
    No, bearings are lubricated by the conveyed medium. Dry operation will damage components.
  4. Q4: What’s the maximum operating temperature?
    Up to 60°C for plastic pumps and 100°C for metal versions.
  5. Q5: Is it suitable for outdoor installation?
    Yes, it is resistant to stress corrosion cracking and atmospheric exposure.
  6. Q6: What industries use the CQF pump?
    Chemical, electroplating, environmental, pharmaceutical, and water treatment industries.
  7. Q7: Does Chaodun Pump offer OEM customization?
    Yes, OEM/ODM options include customized power, voltage, and materials for export orders.
