Product Overview

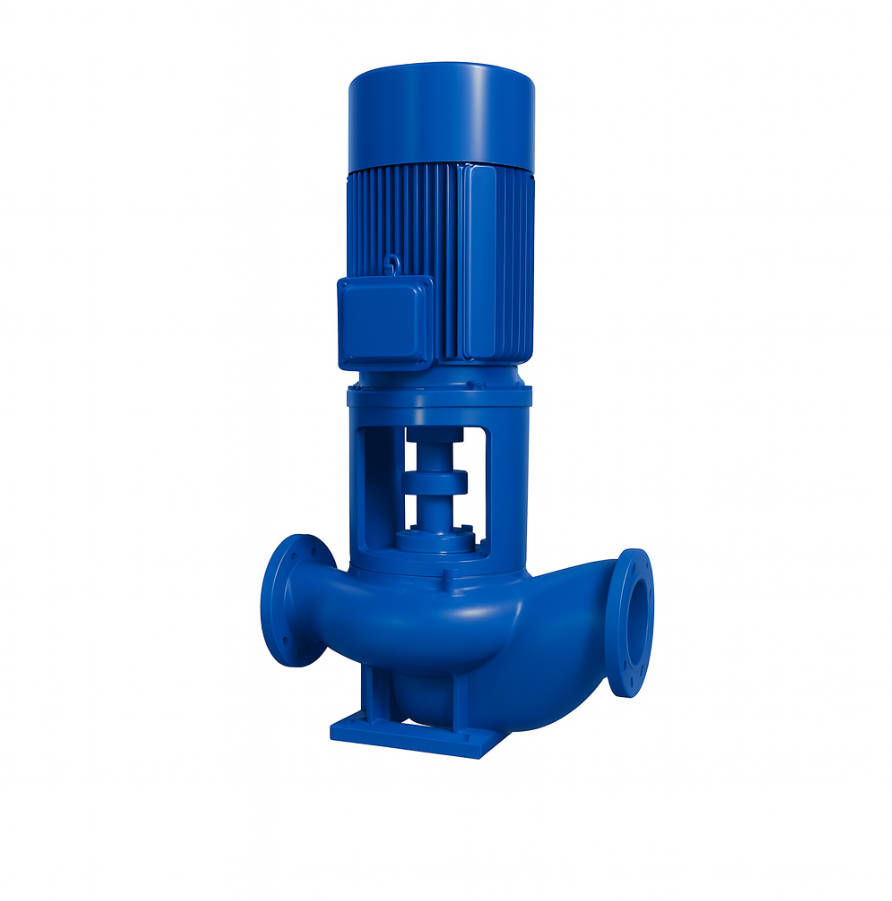

The ISGB Vertical Removable Line Centrifugal Clean Water Pump is a newly developed vertical centrifugal pump based on the IS single-stage end-suction centrifugal pump and the ISG online cleaning water pump design, in compliance with the ISO 2858 international standard. By integrating years of manufacturing experience and extensive user feedback, this pump series adopts an optimized structural design and advanced hydraulic performance. It is suitable for various pipeline applications, ensuring stable performance and reliable flow under a wide range of working conditions.

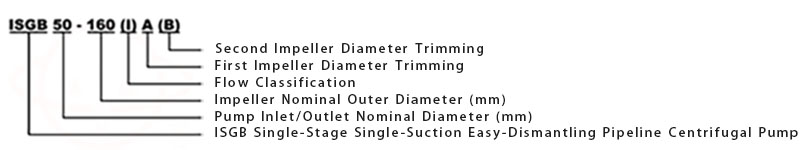

Model Designation
Key Features
-
The rigid coupling design between the pump shaft and the motor shaft ensures low vibration and low noise operation.
-
The independent shaft support structure effectively prevents hydraulic loads from being transmitted to the motor bearings, extending the motor’s service life.
-
The forced circulation mechanical seal design is not affected by rotation direction, providing high reliability and long service life.
-

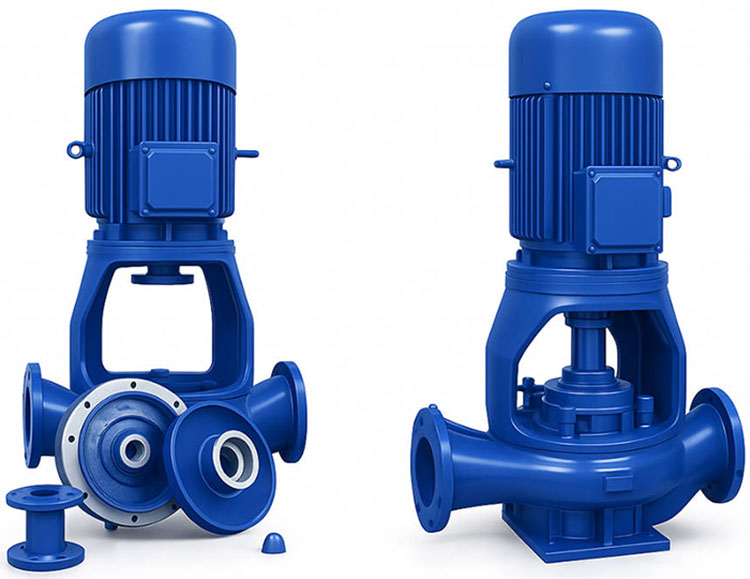

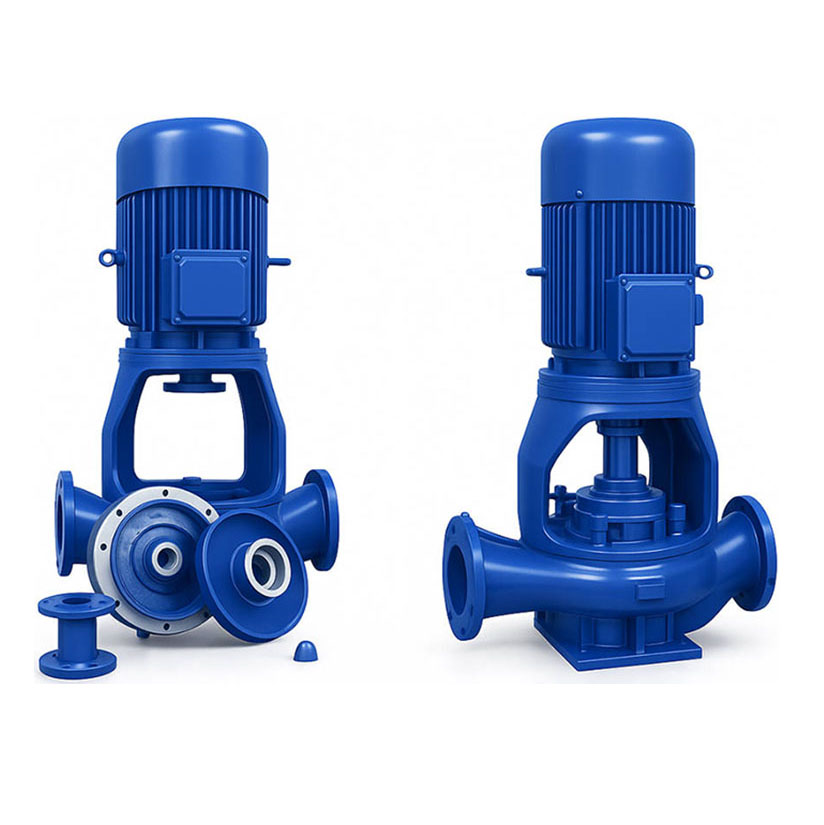

The easy-to-disassemble structure facilitates bearing, mechanical seal, and impeller replacement, reducing maintenance costs.
-
The compact vertical design saves approximately 30% to 50% of installation space, reducing construction costs.
-
Optimized sealing and structural design ensure long-term leak-free operation, reducing operating and maintenance costs.
Engineering Overview
The ISGB pump adopts an independent shaft support, eliminating the structural limitations of traditional ISG and ISW pumps. Through modern hydraulic design, the axial and radial forces generated during operation are effectively balanced, ensuring that the pump shaft and motor bearings are subjected to minimal load, enhancing the system’s operational stability and reliability.
Typical Applications
The ISGB Vertical Removable Line Centrifugal Clean Water Pump is suitable for the following applications:
-
Engineering pipeline systems
-
Various building fire water supply systems
-
Automatic sprinkler fire extinguishing systems
-
Water supply systems in industrial and mining sectors
This pump system can be customized according to different requirements and is suitable for mid-rise and high-rise building projects.
System Configuration
The ISGB system primarily consists of the following core components:
-
Vertical removable centrifugal pump casing
-
Independent shaft support assembly
-
Impeller and pump casing with modern hydraulic design
-
Forced circulation mechanical seal
-
Standard motor and rigid coupling
-
Installation base and supporting accessories
Components and Supply
The ISGB system components include:
-
Pump body and bearing assembly
-
Mechanical seals and shaft support system
-
Motor and drive system
-
Supporting pipes and installation accessories
Technical Service
The ISGB water pump system provides comprehensive technical support and services, including but not limited to installation commissioning, operational monitoring, and maintenance recommendations. We provide clients with detailed operation manuals, installation instructions, and remote technical support.
Operating Conditions
-
Temperature range: -20°C to +120°C
-
Environmental humidity: ≤ 95%
-
Suitable for clean, non-corrosive water or liquids with properties similar to water.
Service Conditions
-
Fire hydrant system: Water gun flow rates of 2.5L/s and 5L/s, with water column lengths of 7m, 10m, and 13m.
-
Automatic sprinkler system: Flow rate of 1.0L/s per sprinkler, with a working pressure of 0.1 MPa.
-
The ambient temperature for the equipment should be between 5°C and 40°C.
Protection Functions
The ISGB system is equipped with various protection functions, including overload protection, overpressure protection, and mechanical fault detection, ensuring the safe and stable operation of the pump system under extreme conditions.
Selection Criteria
The selection of the ISGB water pump should be based on the specific application scenario, required flow rate, and head requirements. Installation space, maintenance convenience, and the long-term stability of the system should also be considered.
Installation & Dimensions

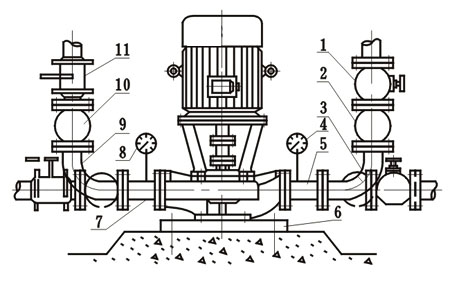

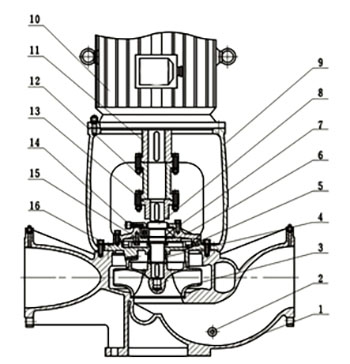

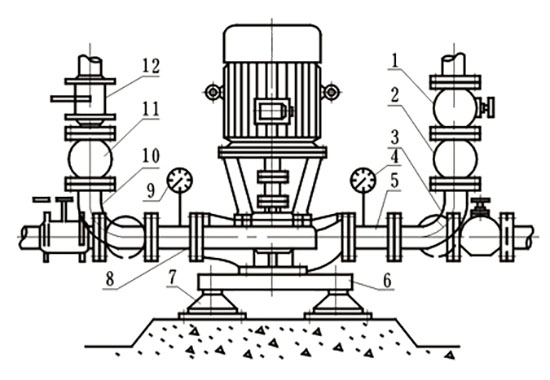

Outline Drawing
Performance Data
|
No.
|
Name
|
No.
|
Name
|
|
1
|
Pump Body
|
9
|
Bracket
|
|
2
|
Drain Plug
|
10
|
Motor
|
|
3
|
Impeller
|
11
|
Motor Coupling
|
|
4
|
Mechanical Seal
|
12
|
Intermediate Coupling
|
|
5
|
Air Release Valve
|
13
|
Pump Coupling
|
|
6
|
Bearing Housing
|
14
|
Oil Cup
|
|
7
|
Bearing
|
15
|
Bearing Cover
|
|
8
|
Pump Shaft
|
16
|
Pump Cover
|

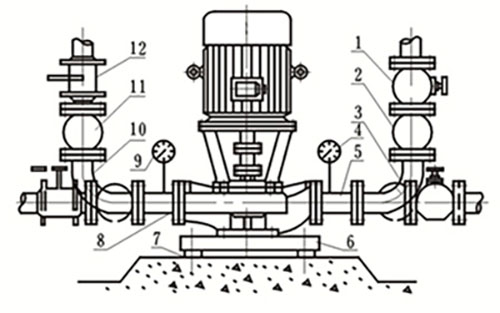

Outline Drawing（2）
Performance Parameters
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
40-100
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
13.2
12.5 11.3 |
48
54 53 |
2900
|
0.55
|
2.3
|
32
|
|
40-100A
|
40
|
3.9
5.6 7.4 |
1.08
1.56 2.06 |
10.6
10 9 |
52
|
2900
|
0.37
|
2.3
|
32
|
|
40-125
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
21
20 18 |
41
46 43 |
2900
|
1.1
|
2.3
|
34
|
|
40-125A
|
40
|
3.9
5.6 7.4 |
1.08
1.56 2.06 |
17.6
16 14.4 |
40
45 41 |
2900
|
0.75
|
2.3
|
33
|
|
40-160
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
33
32 30 |
35
40 40 |
2900
|
2.2
|
2.3
|
47
|
|
40-160A
|
40
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
29
28 26.3 |
34
39 39 |
2900
|
1.5
|
2.3
|
43
|
|
40-160B
|
40
|
3.8
5.5 7.2 |
1.06
1.53 2.0 |
25.5
24 22.5 |
34
38 37 |
2900
|
1.1
|
2.3
|
38
|
|
40-200
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
51
50 48 |
26
33 32 |
2900
|
4
|
2.3
|
74
|
|
40-200A
|
40
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
45
44 42 |
26
31 30 |
2900
|
3
|
2.3
|
62
|
|
40-200B
|
40
|
3.7
5.3 7.0 |
1.03
1.47 1.94 |
38
36 34.5 |
29
|
2900
|
2.2
|
2.3
|
52
|
|
40-250
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
82
80 74 |
24
28 28 |
2900
|
7.5
|
2.3
|
105
|
|
40-250A
|
40
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
72
70 65 |
24
28 27 |
2900
|
5.5
|
2.3
|
98
|
|
40-250B
|
40
|
3.8
5.5 7.0 |
1.06
1.53 1.94 |
61.5
60 56 |
23
27 26 |
2900
|
4
|
2.3
|
77
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
40-100(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
13.2
12.5 11.3 |
55
62 60 |
2900
|
1.1
|
2.3
|
34
|
|
40-100(I)A
|
40
|
8
11 14.5 |
2.22
3.05 4.03 |
10.6
10 9 |
60
|
2900
|
0.75
|
2.3
|
32
|
|
40-125(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.2
20 17.8 |
49
58 57 |
2900
|
1.5
|
2.3
|
38
|
|
40-125(I)A
|
40
|
8
11 14.5 |
2.22
3.05 4.03 |
17
16 14 |
57
|
2900
|
1.1
|
2.3
|
33
|
|
40-160(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
33
32 30 |
45
52 51 |
2900
|
3
|
2.3
|
56
|
|
40-160(I)A
|
40
|
8.2
11.7 15.2 |
2.28
3.25 4.22 |
29
28 26 |
44
51 50 |
2900
|
2.2
|
2.3
|
47
|
|
40-160(I)B
|
40
|
7.3
10.4 13.5 |
2.38
2.89 3.75 |
23
22 20.5 |
50
|
2900
|
1.5
|
2.3
|
43
|
|
40-200(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
51.2
50 48 |
38
46 46 |
2900
|
5.5
|
2.3
|
85
|
|
40-200(I)A
|
40
|
8.3
11.7 15.3 |
2.31
3.25 4.25 |
45.0
44 42 |
37
45 45 |
2900
|
4
|
2.3
|
75
|
|
40-200(I)B
|
40
|
7.5
10.6 13.8 |
2.08
2.94 3.83 |
37
36 34 |
44
|
2900
|
3
|
2.3
|
63
|
|
40-250(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
81.2
80 77.5 |
31
38 40 |
2900
|
11
|
2.3
|
145
|
|
40-250(I)A
|
40
|
8.2
11.6 15.2 |
2.28
3.22 4.22 |
71.0
70 68 |
38
|
2900
|
7.5
|
2.3
|
95
|
|
40-250(I)B
|
40
|
7.6
10.8 14 |
2.11
3.0 3.89 |
61.4
60 58 |
37
|
2900
|
7.5
|
2.3
|
94
|
|
40-250(I)C
|
40
|
7.1
10.0 13.1 |
1.97
2.78 3.64 |
53.2
52 50.4 |
36
|
2900
|
5.5
|
2.3
|
88
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
50-100
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
13.6
12.5 11.3 |
55
62 60 |
2900
|
1.1
|
2.3
|
36
|
|
50-100A
|
50
|
8
11 14.5 |
2.22
3.05 4.03 |
11
10 9 |
60
|
2900
|
0.75
|
2.3
|
35
|
|
50-125
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.5
20 17.8 |
49
58 57 |
2900
|
1.5
|
2.3
|
43
|
|
50-125A
|
50
|
8
11 14.5 |
2.22
3.05 4.03 |
17
16 14 |
57
|
2900
|
1.1
|
2.3
|
38
|
|
50-160
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
33
32 30 |
45
52 51 |
2900
|
3
|
2.3
|
59
|
|
50-160A
|
50
|
8.2
11.7 15.2 |
2.28
3.25 4.22 |
29
28 26 |
44
51 50 |
2900
|
2.2
|
2.3
|
51
|
|
50-160B
|
50
|
7.3
10.4 13.5 |
2.38
2.89 3.75 |
23
22 20.5 |
50
|
2900
|
1.5
|
2.3
|
47
|
|
50-200
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
52
50 48 |
38
46 46 |
2900
|
5.5
|
2.3
|
101
|
|
50-200A
|
50
|
8.3
11.7 15.3 |
2.31
3.25 4.25 |
45.8
44 42 |
37
45 45 |
2900
|
4
|
2.3
|
80
|
|
50-200B
|
50
|
7.5
10.6 13.8 |
2.08
2.94 3.83 |
37
36 34 |
44
|
2900
|
3
|
2.3
|
68
|
|
50-250
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
82
80 77.5 |
29
38 40 |
2900
|
11
|
2.3
|
160
|
|
50-250A
|
50
|
8.2
11.6 15.2 |
2.28
3.22 4.22 |
71.5
70 68 |
38
|
2900
|
7.5
|
2.3
|
115
|
|
50-250B
|
50
|
7.6
10.8 14 |
2.11
3.0 3.89 |
61.4
60 58 |
37
|
2900
|
7.5
|
2.3
|
114
|
|
50-250C
|
50
|
7.1
10.0 13.1 |
1.97
2.78 3.64 |
53.2
52 50.4 |
36
|
2900
|
5.5
|
2.3
|
108
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
50-100(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
13.7
12.5 10.5 |
67
69 69 |
2900
|
1.5
|
2.5
|
41
|
|
50-100(I)A
|
50
|
15.6
22.3 29 |
4.3
6.19 8.1 |
11
10 8.4 |
65
67 68 |
2900
|
1.1
|
2.5
|
36
|
|
50-125(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
60
68 67 |
2900
|
3
|
2.5
|
56
|
|
50-125(I)A
|
50
|
15.6
22.3 29 |
4.33
6.19 8.1 |
17
16 13.6 |
58
66 65 |
2900
|
2.2
|
2.5
|
48
|
|
50-160(I)
|
50
|
17.5
25 32.5 |
4.68
6.94 9.03 |
34.4
32 27.5 |
54
63 60 |
2900
|
4
|
2.5
|
72
|
|
50-160(I)A
|
50
|
16.4
23.4 30.4 |
4.56
6.5 8.44 |
30
28 24 |
54
62 59 |
2900
|
4
|
2.5
|
71
|
|
50-160(I)B
|
50
|
15.0
21.6 28 |
4.17
6.0 7.78 |
26
24 20.6 |
58
|
2900
|
3
|
2.5
|
59
|
|
50-200(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
52.7
50 45.5 |
49
58 59 |
2900
|
7.5
|
2.5
|
108
|
|
50-200(I)A
|
50
|
16.4
23.5 30.5 |
4.56
6.53 8.47 |
46.4
44 40 |
48
57 58 |
2900
|
7.5
|
2.5
|
107
|
|
50-200(I)B
|
50
|
15.2
21.8 28.3 |
4.22
6.06 7.86 |
40
38 34.5 |
55
|
2900
|
5.5
|
2.5
|
100
|
|
50-250(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
82
80 76.5 |
39
50 52 |
2900
|
15
|
2.5
|
175
|
|
50-250(I)A
|
50
|
16.4
23.4 30.5 |
4.56
6.5 8.47 |
71.5
70 67 |
39
50 52 |
2900
|
11
|
2.5
|
165
|
|
50-250(I)B
|
50
|
15
21.6 28 |
4.17
6.0 7.78 |
61
60 57.4 |
38
49 54 |
2900
|
11
|
2.5
|
165
|
|
50-315(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
128
125 122 |
30
40 44 |
2900
|
30
|
2.5
|
310
|
|
50-315(I)A
|
50
|
16.6
23.7 31 |
4.61
6.58 8.6 |
115
113 110 |
30
40 44 |
2900
|
22
|
2.5
|
245
|
|
50-315(I)B
|
50
|
15.7
22.5 29.2 |
4.36
6.25 8.0 |
103
101 98 |
39
|
2900
|
18.5
|
2.5
|
215
|
|
50-315(I)C
|
50
|
14.4
20.6 26.8 |
4.0
5.72 7.44 |
86
85 83 |
38
|
2900
|
15
|
2.5
|
195
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
65-100
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
13.7
12.5 10.5 |
67
69 69 |
2900
|
1.5
|
2.5
|
46
|
|
65-100A
|
65
|
15.6
22.3 29 |
4.3
6.19 8.1 |
11
10 8.4 |
65
67 68 |
2900
|
1.1
|
2.5
|
41
|
|
65-125
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
60
68 67 |
2900
|
3
|
2.5
|
58
|
|
65-125A
|
65
|
15.6
22.3 29 |
4.33
6.19 8.1 |
17
16 14.4 |
58
66 65 |
2900
|
2.2
|
2.5
|
49
|
|
65-160
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
34.4
32 27.5 |
54
63 60 |
2900
|
4
|
2.5
|
75
|
|
65-160A
|
65
|
16.4
23.4 30.4 |
4.56
6.5 8.44 |
30
28 24 |
54
62 59 |
2900
|
4
|
2.5
|
75
|
|
65-160B
|
65
|
15.0
21.6 28 |
4.17
6.0 7.78 |
26
24 20.6 |
58
|
2900
|
3
|
2.5
|
63
|
|
65-200
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
52.7
50 45.5 |
49
58 59 |
2900
|
7.5
|
2.5
|
107
|
|
65-200A
|
65
|
16.4
23.5 30.5 |
4.56
6.53 8.47 |
46.4
44 40 |
48
57 58 |
2900
|
7.5
|
2.5
|
107
|
|
65-200B
|
65
|
15.2
21.8 28.3 |
4.22
6.06 7.86 |
40
38 34.5 |
55
|
2900
|
5.5
|
2.5
|
100
|
|
65-250
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
82
80 76.5 |
39
50 52 |
2900
|
15
|
2.5
|
180
|
|
65-250A
|
65
|
16.4
23.4 30.5 |
4.56
6.5 8.47 |
71.5
70 67 |
39
50 52 |
2900
|
11
|
2.5
|
170
|
|
65-250B
|
65
|
15
21.6 28 |
4.17
6.0 7.78 |
61
60 57.4 |
38
49 54 |
2900
|
11
|
2.5
|
170
|
|
65-315
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
127
125 122 |
32
40 44 |
2900
|
30
|
2.5
|
320
|
|
65-315A
|
65
|
16.6
23.7 31 |
4.61
6.58 8.6 |
115
113 110 |
32
40 44 |
2900
|
22
|
2.5
|
255
|
|
65-315B
|
65
|
15.7
22.5 29.2 |
4.36
6.25 8.0 |
103
101 98 |
39
|
2900
|
18.5
|
2.5
|
225
|
|
65-315C
|
65
|
14.4
20.6 26.8 |
4.0
5.72 7.44 |
86
85 83 |
38
|
2900
|
15
|
2.5
|
205
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
65-100(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
13.8
12.5 10 |
67
73 70 |
2900
|
3
|
3.0
|
63
|
|
65-100(I)A
|
65
|
31.3
44.7 58 |
8.7
12.4 16.1 |
11
10 8 |
66
72 69 |
2900
|
2.2
|
3.0
|
53
|
|
65-125(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
22
20 17 |
67
72.5 70 |
2900
|
5.5
|
3.0
|
99
|
|
65-125(I)A
|
65
|
31.3
44.7 58 |
8.7
12.5 16.1 |
17.5
16 13.6 |
66
71 69 |
2900
|
4
|
3.0
|
78
|
|
65-160(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
35
32 28 |
63
71 70 |
2900
|
7.5
|
3.0
|
103
|
|
65-160(I)A
|
65
|
32.7
46.7 61 |
9.1
13.0 16.9 |
30.6
28 24 |
62
70 69 |
2900
|
7.5
|
3.0
|
103
|
|
65-160(I)B
|
65
|
30.3
43.3 56.3 |
8.4
12.0 15.6 |
26
24 21 |
69
|
2900
|
5.5
|
3.0
|
97
|
|
65-200(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
53.5
50 46 |
55
67 68 |
2900
|
15
|
3.0
|
176
|
|
65-200(I)A
|
65
|
32.8
47 61 |
9.1
13.1 16.9 |
47
44 40 |
54
66 67 |
2900
|
11
|
3.0
|
166
|
|
65-200(I)B
|
65
|
30.5
43.5 56.6 |
8.5
12.1 15.7 |
40.6
38 33.4 |
65
|
2900
|
7.5
|
3.0
|
114
|
|
65-250(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
83
80 72 |
52
59 60 |
2900
|
22
|
3.0
|
235
|
|
65-250(I)A
|
65
|
32.5
46.7 61 |
9.0
13.0 16.9 |
73
70 63 |
52
59 60 |
2900
|
18.5
|
3.0
|
205
|
|
65-250(I)B
|
65
|
30
43.3 56 |
8.3
12.0 15.6 |
62
60 54 |
58
|
2900
|
15
|
3.0
|
180
|
|
65-315(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
128
125 121 |
44
54 57 |
2900
|
37
|
3.0
|
350
|
|
65-315(I)A
|
65
|
32.5
46.5 60.5 |
9.0
12.9 16.8 |
112.6
110 106.4 |
43
54 57 |
2900
|
30
|
3.0
|
335
|
|
65-315(I)B
|
65
|
31
44.5 58 |
8.6
12.4 16.1 |
102.5
100 98 |
53
|
2900
|
30
|
3.0
|
335
|
|
65-315(I)C
|
65
|
29
41 53.6 |
8.1
11.4 14.9 |
87
85 83 |
51
|
2900
|
22
|
3.0
|
270
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
80-100
|
80
|
35
50 65 |
9.72
13.9 18.1 |
13.8
12.5 10 |
67
73 70 |
2900
|
3
|
3.0
|
63
|
|
80-100A
|
80
|
31.3
44.7 58 |
8.7
12.5 16.1 |
11
10 8 |
66
72 69 |
2900
|
2.2
|
3.0
|
54
|
|
80-125
|
80
|
35
50 65 |
9.72
13.9 18.1 |
22
20 17 |
67
72.5 70 |
2900
|
5.5
|
3.0
|
99
|
|
80-125A
|
80
|
31.3
45 58 |
8.7
12.5 16.1 |
17.5
16 13.6 |
66
71 69 |
2900
|
4
|
3.0
|
79
|
|
80-160
|
80
|
35
50 65 |
9.72
13.9 18.1 |
35
32 28 |
63
71 70 |
2900
|
7.5
|
3.0
|
105
|
|
80-160A
|
80
|
32.7
46.7 61 |
9.1
13.0 16.9 |
30.6
28 24 |
62
70 69 |
2900
|
7.5
|
3.0
|
105
|
|
80-160B
|
80
|
30.3
43.3 56.3 |
8.4
12.0 15.6 |
26
24 21 |
69
|
2900
|
5.5
|
3.0
|
98
|
|
80-200
|
80
|
35
50 65 |
9.72
13.9 18.1 |
53.5
50 46 |
55
67 68 |
2900
|
15
|
3.0
|
175
|
|
80-200A
|
80
|
32.8
47 61 |
9.1
13.1 16.9 |
47
44 40 |
54
66 67 |
2900
|
11
|
3.0
|
165
|
|
80-200B
|
80
|
30.5
43.5 56.6 |
8.5
12.1 15.7 |
40.6
38 33.4 |
65
|
2900
|
7.5
|
3.0
|
115
|
|
80-250
|
80
|
35
50 65 |
9.72
13.9 18.1 |
83
80 72 |
52
59 60 |
2900
|
22
|
3.0
|
240
|
|
80-250A
|
80
|
32.5
46.7 61 |
9.0
13.0 16.9 |
73
70 63 |
52
59 60 |
2900
|
18.5
|
3.0
|
210
|
|
80-250B
|
80
|
30
43.3 56 |
8.3
12.0 15.6 |
62
60 54 |
58
|
2900
|
15
|
3.0
|
185
|
|
80-315
|
80
|
35
50 65 |
9.72
13.9 18.1 |
128
125 122 |
43
54 57 |
2900
|
37
|
3.0
|
355
|
|
80-315A
|
80
|
32.5
46.5 60.5 |
9.0
12.9 16.8 |
112.6
110 107.4 |
43
54 57 |
2900
|
30
|
3.0
|
340
|
|
80-315B
|
80
|
31
44.5 58 |
8.6
12.4 16.1 |
102.5
100 98 |
53
|
2900
|
30
|
3.0
|
340
|
|
80-315C
|
80
|
29
41 53.6 |
8.1
11.4 14.9 |
98
85 83 |
51
|
2900
|
22
|
3.0
|
275
|
|
80-350
|
80
|
35
50 65 |
9.72
13.9 18.1 |
146
150 142 |
55
66 67 |
2900
|
55
|
3.0
|
570
|
|
80-350A
|
80
|
31
44.5 58 |
8.6
12.4 16.1 |
138.4
142 134.8 |
65
|
2900
|
45
|
3.0
|
470
|
|
80-350B
|
80
|
29
41 53.6 |
8.1
11.4 14.9 |
131.4
135 127.8 |
63
|
2900
|
37
|
3.0
|
440
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
80-100(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
13.6
12.5 11 |
66
76 75 |
2900
|
5.5
|
4.5
|
108
|
|
80-100(I)A
|
80
|
62.6
89 116 |
17.4
24.7 32.2 |
11
10 8.8 |
64
74 74 |
2900
|
4
|
4.5
|
87
|
|
80-125(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
23.5
20 14 |
70
76 65 |
2900
|
11
|
4.5
|
163
|
|
80-125(I)A
|
80
|
62.6
89 116 |
17.4
24.7 32.2 |
19
16 11 |
68
74 65 |
2900
|
7.5
|
4.5
|
113
|
|
80-160(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
36.5
32 24 |
70
76 65 |
2900
|
15
|
4.5
|
184
|
|
80-160(I)A
|
80
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
32
28 21 |
68
74 67 |
2900
|
11
|
4.5
|
174
|
|
80-160(I)B
|
80
|
60.6
86.6 112.5 |
16.8
24.1 31.3 |
72
24 18 |
72
|
2900
|
11
|
4.5
|
174
|
|
80-200(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
54
50 42 |
65
74 73 |
2900
|
22
|
4.0
|
251
|
|
80-200(I)A
|
80
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
47.5
44 37 |
64
73 72 |
2900
|
18.5
|
4.0
|
220
|
|
80-200(I)B
|
80
|
61
87 113 |
16.9
24.2 31.4 |
41
38 32 |
71
|
2900
|
15
|
4.0
|
198
|
|
80-250(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
87
80 68 |
62
69 68 |
2900
|
37
|
4.0
|
330
|
|
80-250(I)A
|
80
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
76
70 59.5 |
61
68 67 |
2900
|
30
|
4.0
|
315
|
|
80-250(I)B
|
80
|
61
87 113 |
16.9
24.2 31.4 |
65
60 51 |
66
|
2900
|
30
|
4.0
|
315
|
|
80-315(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
132
125 114 |
55
66 67 |
2900
|
75
|
4.0
|
675
|
|
80-315(I)A
|
80
|
66.5
95 123.6 |
18.5
26.4 34.3 |
119
113 103 |
55
66 67 |
2900
|
55
|
4.0
|
535
|
|
80-315(I)B
|
80
|
63
90 117 |
17.5
25 32.5 |
106.6
101 92 |
65
|
2900
|
45
|
4.0
|
420
|
|
80-315(I)C
|
80
|
58
82 107 |
16.1
22.8 29.7 |
90
85 76 |
63
|
2900
|
37
|
4.0
|
366
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
100-100
|
100
|
70
100 130 |
19.4
27.8 36.1 |
13.6
12.5 11 |
66
76 75 |
2900
|
5.5
|
4.5
|
113
|
|
100-100A
|
100
|
62.6
89 116 |
17.4
47 32.2 |
11
10 8.8 |
64
74 74 |
2900
|
4
|
4.5
|
91
|
|
100-125
|
100
|
70
100 130 |
19.4
27.8 36.1 |
23.5
20 14 |
70
76 65 |
2900
|
11
|
4.5
|
169
|
|
100-125A
|
100
|
62.6
89 116 |
17.4
24.7 32.2 |
19
16 11 |
68
74 63 |
2900
|
7.5
|
4.5
|
118
|
|
100-160
|
100
|
70
100 130 |
19.4
27.8 36.1 |
36.5
32 24 |
70
76 65 |
2900
|
15
|
4.5
|
191
|
|
100-160A
|
100
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
32
28 21 |
68
74 67 |
2900
|
11
|
4.5
|
181
|
|
100-160B
|
100
|
60.6
86.6 112.5 |
16.8
24.1 31.3 |
27
24 18 |
72
|
2900
|
11
|
4.5
|
181
|
|
100-200
|
100
|
70
100 130 |
19.4
27.8 36.1 |
54
50 42 |
65
74 73 |
2900
|
22
|
4.0
|
245
|
|
100-200A
|
100
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
47.5
44 37 |
64
73 72 |
2900
|
18.5
|
4.0
|
215
|
|
100-200B
|
100
|
61
87 113 |
16.9
24.2 31.4 |
41
38 32 |
71
|
2900
|
15
|
4.0
|
193
|
|
100-250
|
100
|
70
100 130 |
19.4
27.8 36.1 |
37
80 68 |
62
69 68 |
2900
|
37
|
4.0
|
345
|
|
100-250A
|
100
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
76
70 59.5 |
61
68 67 |
2900
|
30
|
4.0
|
330
|
|
100-250B
|
100
|
61
87 113 |
16.9
24.2 31.4 |
65
60 51 |
66
|
2900
|
30
|
4.0
|
330
|
|
100-315
|
100
|
70
100 130 |
19.4
27.8 36.1 |
132
125 114 |
55
66 67 |
2900
|
75
|
4.0
|
689
|
|
100-315A
|
100
|
66.5
95 123.6 |
18.5
26.4 34.3 |
119
113 103 |
65
66 67 |
2900
|
55
|
4.0
|
549
|
|
100-315B
|
100
|
63
90 117 |
17.5
25 32.5 |
106.6
101 92 |
65
|
2900
|
45
|
4.0
|
439
|
|
100-315C
|
100
|
58
82 107 |
16.1
22.8 29.7 |
90
85 76 |
63
|
2900
|
37
|
4.0
|
385
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
100-100(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
14
12.5 10 |
64
73 70 |
2900
|
11
|
4.5
|
115
|
|
100-125(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
24
20 14 |
62
74 69 |
2900
|
15
|
4.5
|
168
|
|
100-125(I)A
|
100
|
84
140 168 |
23.3
39 46.7 |
20
17 12 |
64
72 68 |
2900
|
11
|
4.5
|
168
|
|
100-160(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
36
32 27 |
69
79 75 |
2900
|
22
|
5.6
|
210
|
|
100-160(I)A
|
100
|
84
140 168 |
23.3
39 46.7 |
32
28 23.5 |
66
76 72 |
2900
|
18.5
|
5.0
|
210
|
|
100-200(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
53
50 45 |
69
79 78 |
2900
|
37
|
5.2
|
402
|
|
100-200(I)A
|
100
|
84
140 168 |
23.3
39 46.7 |
48
45 40 |
64
74 73 |
2900
|
30
|
4.5
|
395
|
|
100-200(I)B
|
100
|
60
100 120 |
16.7
27.8 33.3 |
43
40 36 |
72
|
2900
|
22
|
4.5
|
360
|
|
100-250(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
83
80 72 |
65
77 74 |
2900
|
55
|
4.8
|
560
|
|
100-250(I)A
|
100
|
84
140 168 |
23.3
39 46.7 |
75
72 65 |
60
72 69 |
2900
|
45
|
4.5
|
420
|
|
100-250(I)B
|
100
|
60
100 120 |
16.7
27.8 33.3 |
68
65 58 |
70
|
2900
|
37
|
4.5
|
400
|
|
100-350
|
100
|
60
100 120 |
16.7
27.8 33.3 |
153.6
150 142 |
72
57 74 |
2900
|
90
|
4.0
|
950
|
|
100-350A
|
100
|
61
87 113 |
16.9
24.2 31.4 |
145.6
142 134 |
75
|
2900
|
75
|
4.0
|
830
|
|
100-350B
|
100
|
58
82 107 |
16.1
22.8 29.7 |
138.6
135 127 |
75
|
2900
|
55
|
4.0
|
600
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
125-100
|
125
|
96
160 192 |
26.7
44.4 53.3 |
13
12.5 12 |
82
|
2900
|
11
|
4.0
|
180
|
|
125-100A
|
125
|
86
143 172 |
23.9
39.7 47.8 |
10.4
10 9.6 |
77
|
2900
|
7.5
|
4.0
|
125
|
|
125-125
|
125
|
96
160 192 |
26.7
44.4 53.3 |
22.6
20 17 |
80
|
2900
|
15
|
4.0
|
220
|
|
125-125A
|
125
|
86
143 172 |
23.9
39.7 47.8 |
18
16 13.6 |
77
|
2900
|
11
|
4.0
|
210
|
|
125-160
|
125
|
96
160 192 |
26.7
44.4 53.3 |
36
32 28 |
78
|
2900
|
22
|
4.0
|
265
|
|
125-160A
|
125
|
90
150 180 |
25
41.7 50 |
31.5
28 24.5 |
76
|
2900
|
18.5
|
4.0
|
230
|
|
125-160B
|
125
|
83
138 166 |
21.7
38.3 46.1 |
27
24 21 |
73
|
2900
|
15
|
4.0
|
215
|
|
125-200
|
125
|
96
160 192 |
26.7
44.4 53.3 |
55
50 46 |
77
|
2900
|
37
|
5.5
|
395
|
|
125-200A
|
125
|
90
150 180 |
25
41.7 50 |
48.4
44 40.5 |
76
|
2900
|
30
|
5.5
|
380
|
|
125-200B
|
125
|
83
138 166 |
21.7
38.3 46.1 |
41.3
37.5 34.5 |
75
|
2900
|
22
|
5.5
|
320
|
|
125-250
|
125
|
96
160 192 |
26.7
44.4 53.3 |
87
80 73 |
75
|
2900
|
55
|
5.0
|
580
|
|
125-250A
|
125
|
90
150 180 |
25
41.7 50 |
76
70 84 |
74
|
2900
|
45
|
5.5
|
490
|
|
125-250B
|
125
|
83
138 166 |
21.7
38.3 46.1 |
65
60 55 |
73
|
2900
|
37
|
5.5
|
430
|
|
125-315
|
125
|
96
160 192 |
26.7
44.7 53.3 |
133
125 119 |
70
|
2900
|
90
|
5.0
|
790
|
|
125-315A
|
125
|
90
150 180 |
25
41.7 50 |
117
110 104.6 |
70
|
2900
|
75
|
5.0
|
710
|
|
125-315B
|
125
|
86
143 172 |
23.9
39.7 47.8 |
106.4
100 95.2 |
69
|
2900
|
75
|
5.0
|
705
|
|
125-315C
|
125
|
80.5
134 161 |
22.4
37.2 44.7 |
96
88 86 |
67
|
2900
|
55
|
5.0
|
585
|
|
Model
|
Caliber
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
NPSHr
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
150-125
|
150
|
96
160 192 |
26.7
44.4 53.3 |
22.6
24 17 |
66
76 76 |
2900
|
11
|
4.0
|
210
|
|
150-125A
|
150
|
90
150 180 |
25
41.7 50 |
18
16 13.6 |
77
|
2900
|
7.5
|
4.0
|
130
|
|
150-160
|
150
|
96
160 192 |
26.7
44.4 53.3 |
36
32 27 |
75
|
2900
|
22
|
4.0
|
270
|
|
150-160A
|
150
|
90
150 180 |
25
41.7 50 |
32
28 23.5 |
76
|
2900
|
18.5
|
4.0
|
230
|
|
150-160B
|
150
|
84
140 168 |
23.3
39 46.7 |
27
24 21 |
73
|
2900
|
15
|
4.0
|
220
|
|
150-200
|
150
|
96
160 192 |
26.7
44.4 53.3 |
55
50 46 |
77
|
2900
|
37
|
5.5
|
395
|
|
150-200A
|
150
|
90
150 180 |
25
41.7 50 |
48.4
44 40.5 |
76
|
2900
|
30
|
5.5
|
380
|
|
150-200B
|
150
|
84
140 168 |
23.3
39 46.7 |
41
38 34 |
75
|
2900
|
22
|
4.0
|
275
|
|
150-250
|
150
|
140
200 260 |
38.9
55.6 72.2 |
87
80 73 |
75
|
2900
|
75
|
5.0
|
630
|
|
150-250A
|
150
|
131
187 243 |
36.4
51.9 67.5 |
76
70 84 |
74
|
2900
|
55
|
5.5
|
530
|
|
150-250B
|
150
|
121
173 225 |
33.5
48.1 62.5 |
65
60 55 |
73
|
2900
|
45
|
5.5
|
480
|
|
150-315
|
150
|
140
200 260 |
38.9
55.6 72.2 |
133
125 119 |
70
|
2900
|
110
|
5.0
|
1080
|
|
150-315A
|
150
|
131
187 243 |
36.4
51.9 67.5 |
117
110 104.6 |
70
|
2900
|
90
|
5.0
|
820
|
|
150-315B
|
150
|
121
173 225 |
33.5
48.1 62.5 |
106.4
100 95.2 |
69
|
2900
|
75
|
5.0
|
770
|
|
150-315C
|
150
|
112
160 208 |
31.3
44.4 57.8 |
96
88 86 |
67
|
2900
|
55
|
5.0
|
640
|
|
150-350
|
150
|
96
160 192 |
26.7
44.4 53.3 |
153.6
150 142.8 |
80
|
2900
|
110
|
5.5
|
970
|
|
150-350A
|
150
|
90
150 180 |
25
41.7 50 |
145.6
142 134.8 |
70
|
2900
|
90
|
5.2
|
790
|
|
150-350B
|
150
|
84
140 168 |
23.3
39 46.7 |
138.6
135 127.8 |
65
76 74 |
2900
|
75
|
5.5
|
705
|
Installation Guide
-
Pipeline Support: The weight of the pipeline should not be borne by the pump. Each pipeline should have its own support system to prevent pump deformation, which may affect performance and shorten its service life.
-
Maintenance and Safety: To facilitate maintenance and ensure safe operation, install a regulating valve on both the inlet and outlet pipelines of the pump. Additionally, a pressure gauge should be placed near the pump outlet to monitor operating conditions. This ensures the pump runs within its rated head and flow range, thereby extending its service life.
-
Suction Conditions: When the pump operates under suction conditions, a foot valve must be installed. The inlet pipeline should be designed with as few bends as possible, and there must be no water or air leakage.
-
Pre-Operation Check: After installation, manually rotate the pump shaft. The impeller should rotate smoothly without friction or obstruction. If any resistance is detected, disassemble the pump to identify and resolve the cause.
-
Connection Methods: There are two installation methods for the pump: rigid connection and flexible connection. Choose the appropriate method based on the installation environment and system requirements.

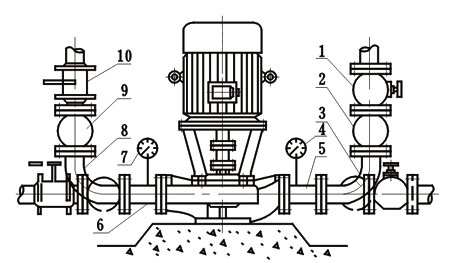

Installation Method
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Method（2）
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Manual
Preparations
(I) Preparations Before Starting
-
Rotate the pump shaft or pump coupling by hand; the impeller should rotate smoothly without friction or obstruction.
-
Open the inlet valve and the exhaust valve to allow liquid to fill the pump chamber completely, then close the exhaust valve.
-
Manually rotate the pump shaft to allow lubricating fluid to enter the mechanical seal surfaces.
-
Jog the motor to check whether the rotation direction is correct.
(II) Start-Up and Operation
-
Fully open the inlet valve and close the outlet pipeline valve.
-
Switch on the power supply. Once the pump reaches normal speed, gradually open the outlet valve and adjust to the required operating conditions.
-
Monitor instrument readings. Check for shaft seal leakage (normal mechanical seal leakage should not exceed 3 drops/min). Ensure that the temperature rise of the motor and bearings does not exceed 70°C. If any abnormal conditions arise, take corrective action immediately.
(III) Shutdown
-
Gradually close the outlet pipeline valve and disconnect the power supply.
-
Close the inlet valve.
-
If the ambient temperature is below 0°C, drain the liquid inside the pump to prevent freezing and potential damage.
-
For long-term shutdown, disassemble the pump, clean it, and store it properly.
OEM & Custom
We provide OEM/ODM manufacturing with options for stainless steel, cast iron, or duplex steel materials, customized voltage (220V/415V/460V), and explosion-proof motors. Optional base-mounted designs and flange standards (DIN/ANSI/JIS) are available. All pumps comply with ISO9001 and CE certification for export markets.
FAQs
- Q: What’s the main feature of ISGB pumps?
A: The detachable structure allows easy maintenance without disassembling pipelines. - Q: What’s the temperature range?
A: Standard type handles up to 120°C; special designs can reach 150°C. - Q: Can it be used for hot and cold water systems?
A: Yes, widely used in HVAC and industrial circulation systems. - Q: What materials are available?
A: Cast iron or stainless steel (304/316) versions depending on media. - Q: How often does it need maintenance?
A: Regular bearing lubrication every 500 hours; otherwise maintenance-free. - Q: Is it suitable for high-rise building water supply?
A: Yes, ideal for pressurized clean water systems in tall buildings. - Q: Which markets use this pump?
A: Widely exported to Southeast Asia, the Middle East, and Africa for water supply and HVAC systems.
