Product Overview
The PBG Vertical Canned Clean Water Pump series adopts advanced canned motor in-line pump design concepts. By integrating the motor shielding technology into the liquid delivery system, the motor and hydraulic section are combined into a single sealed unit, offering high-reliability, low-noise clean water handling capabilities that meet the needs of industrial and municipal clean water processing.
This series complies with ISO 2858 and JB/T 6878.2-93 standards. With a standardized design, high interchangeability, reasonable structure, stable performance, low operating noise, and minimal vibration, PBG pumps serve as ideal alternatives to traditional horizontal centrifugal pumps and vertical in-line pumps.
Model Designation
Key Features
-
Canned Motor Technology: Utilizes canned motor technology for truly leak-free operation.
-
Low Noise & Low Vibration: Short shaft design and sliding bearings provide stable operation with minimal noise and vibration.
-
Leak-Free Operation: No sealing configuration required, ensuring truly zero-leakage performance.
-
Compact Structure: Designed to occupy minimal space, ideal for integration into various pipeline systems.
-
Durability: Sliding bearings replace rolling bearings for ultra-smooth performance and long service life.
Engineering Overview
The PBG series is a vertical single-stage, single-suction centrifugal pump, configured with a canned motor. The stator and rotor are completely isolated by a shielding sleeve, eliminating the need for traditional shaft seals. The liquid itself acts as both bearing lubrication and motor cooling fluid, enabling the pump to operate leak-free.
The full series includes 67 pump models and 184 specifications, covering the following performance ranges:
-
Flow Rate: 6.3–108 m³/h
-
Head: 12.5–125 meters
-
Motor Power: 0.37–160 kW
-
Speed: 1450 RPM, 2900 RPM
Typical Applications
The PBG series pumps are widely used in:
-
Industrial and Municipal Water Supply and Drainage
-
Pressure Boosting for High-rise Buildings
-
Landscape Irrigation and Long-distance Water Transport
-
Firefighting System Enhancement
-
HVAC Cooling and Heating Circulation
-
Low Noise, Low Vibration Environments (e.g., underground pump stations and HVAC systems)
This pump is suitable for clean water, seawater, mildly acidic/alkaline liquids, and general slurry media. Strongly corrosive media are not recommended.
System Configuration
The PBG series includes:
-
Pump Casing
-
Impeller
-
Coupling Assembly
-
Sliding Bearings (graphite-impregnated resin composite)
-
Stirrer and Rotor
-
Shielding Sleeve
-
Motor Housing
-
Installation Base
Components & Supply
The PBG pumps are composed of high-quality materials to ensure long-lasting and efficient operation, including optimized hydraulic performance. The motor and pump are integrated into a single unit, providing a compact and space-saving solution. All components are designed for ease of maintenance and efficient operation.
Technical Service
The PBG pump series offers comprehensive technical support and services, including installation guidance, troubleshooting, and ongoing maintenance support. Customers can access help through online resources, phone support, or on-site assistance, ensuring the pump maintains optimal performance throughout its lifecycle.
Operating Conditions
-
Medium: Clean water, seawater, mildly acidic/alkaline liquids, and general slurry media.
-
Maximum Liquid Temperature: Standard version ≤80°C; Hot water version ≤160°C.
-
Maximum System Working Pressure: ≤1.2 MPa.
-
Suction Pressure: ≥0.5 MPa.
-
Environmental Temperature: ≤40°C.
-
Relative Humidity: ≤95%.
-
Solid Content: Maximum particle size ≤2mm (by volume).
Service Conditions
The PBG pump series is ideal for industrial and municipal applications such as water supply, drainage systems, and HVAC systems. It is designed to operate under standard conditions for clean water and general slurry media.
Protection Features
The PBG pumps feature a built-in protection system to ensure stable operation under high-pressure, long-term operating conditions. The cooling system ensures that bearings and motors remain in good condition even at high temperatures.
Selection Standards
When selecting a PBG pump, it is important to base your choice on the specific requirements of your application, including the type of medium, required flow, operating pressure, and temperature. Be sure to provide detailed information about the medium to ensure the appropriate materials and configurations are selected for the pump to meet your operational requirements.
Installation & Dimensions

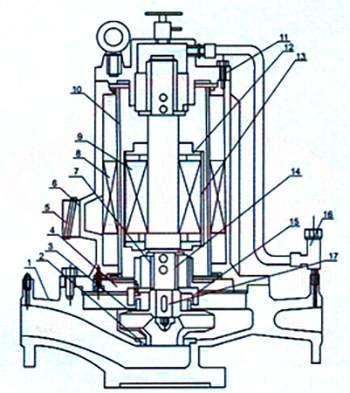

Outline Drawing
Performance Data
|
No.
|
Part Name
|
No.
|
Part Name
|
|
1
|
Pump Casing
|
10
|
Stator Shielding Sleeve
|
|
2
|
Sealing Ring
|
11
|
Upper Bearing Seat
|
|
3
|
Impeller
|
12
|
Rotor End Cover
|
|
4
|
Lower Bearing Seat
|
13
|
Stator Shielding Sleeve
|
|
5
|
Motor Terminal Box
|
14
|
Bearing
|
|
6
|
Motor Housing
|
15
|
Pump Cover
|
|
7
|
Bearing
|
16
|
Cooling Water Pipe Assembly
|
|
8
|
Stator Assembly
|
17
|
Shaft
|
|
9
|
Rotor Assembly
|

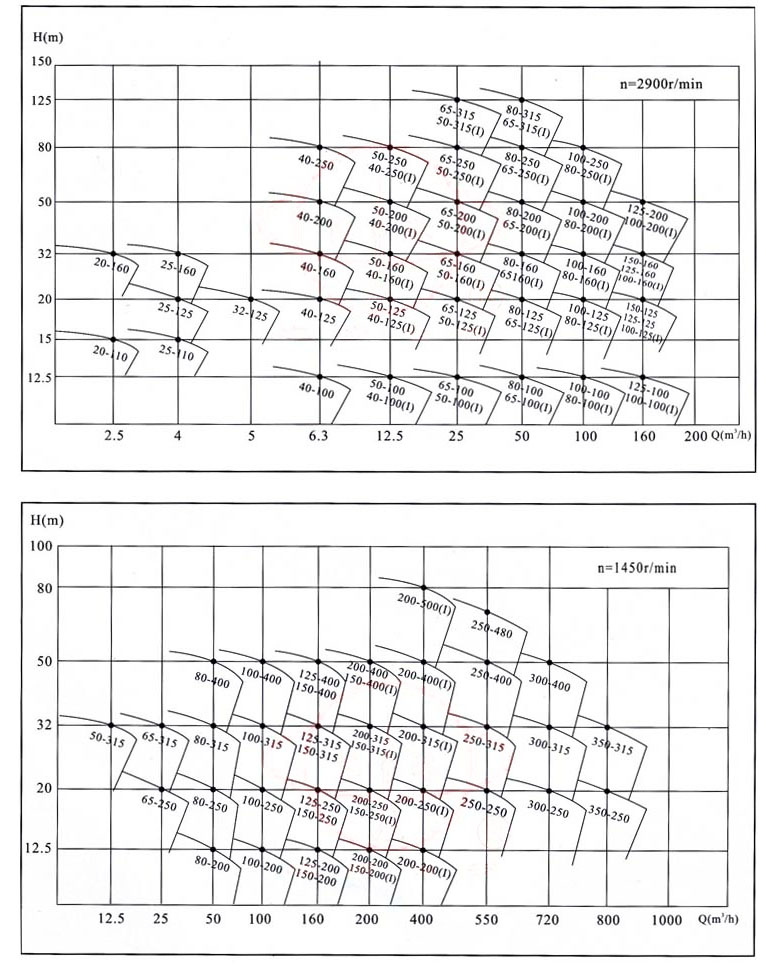

Performance Curves
Performance Parameters
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
20-110
|
20
|
1.8
2.5 3.3 |
0.5
0.69 0.91 |
16
15 13.5 |
25
34 35 |
2800
|
0.37
|
2.3
|
25
|
|
20-160
|
20
|
1.8
2.5 3.3 |
0.5
0.69 0.91 |
33
32 30 |
19
25 23 |
2900
|
0.75
|
2.3
|
29
|
|
25-110
|
25
|
2.8
4 5.2 |
0.78
1.11 1.44 |
16
15 13.5 |
34
42 41 |
2900
|
0.55
|
2.3
|
26
|
|
25-125
|
25
|
2.8
4 5.2 |
0.78
1.11 1.44 |
20.6
20 18 |
28
36 35 |
2900
|
0.75
|
2.3
|
28
|
|
25-125A
|
25
|
2.5
3.6 4.6 |
0.69
1.0 1.28 |
17
16 14.4 |
35
|
2900
|
0.55
|
2.3
|
27
|
|
25-160
|
25
|
2.8
4 5.2 |
0.78
1.11 1.44 |
33
32 30 |
24
32 33 |
2900
|
1.5
|
2.3
|
39
|
|
25-160A
|
25
|
2.6
3.7 4.9 |
0.12
1.03 1.36 |
29
28 26 |
31
|
2900
|
1.1
|
2.3
|
34
|
|
32-100
|
32
|
3.5
5 6.5 |
0.97
0.39 1.8 |
13.2
12.5 11.3 |
40
44 42 |
2900
|
0.75
|
2.3
|
28
|
|
32-125
|
32
|
3.5
5 6.5 |
0.97
0.39 1.8 |
22
20 18 |
40
44 42 |
2900
|
0.75
|
2.3
|
28
|
|
32-125A
|
32
|
3.1
4.5 5.8 |
0.86
1.25 1.61 |
17.6
16 14.4 |
43
|
2900
|
0.75
|
2.3
|
28
|
|
32-160
|
32
|
3.5
5 6.5 |
0.97
0.39 1.8 |
33.2
32 30.2 |
48
54 53 |
2900
|
1.5
|
2.0
|
39
|
|
32-160A
|
32
|
3.1
4.5 5.8 |
0.86
1.25 1.61 |
29
28 26.3 |
48
54 53 |
2900
|
1.1
|
2.0
|
39
|
|
32-200
|
32
|
3.5
5 6.5 |
0.97
0.39 1.8 |
50.5
50 48 |
34
40 42 |
2900
|
3
|
2.0
|
77
|
|
32-200A
|
32
|
2.8
4 5.2 |
0.78
1.11 1.44 |
44.6
44 42.7 |
34
40 42 |
2900
|
2.2
|
2.0
|
74
|
|
32-100(I)
|
32
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
13.2
12.5 11.3 |
48
54 53 |
2900
|
0.75
|
2.0
|
32
|
|
32-100(I)A
|
32
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
13.2
12.5 11.3 |
48
54 53 |
2900
|
0.75
|
2.0
|
32
|
|
32-125(I)
|
32
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
22
20 18 |
48
54 53 |
2900
|
1.1
|
2.3
|
34
|
|
32-125(I)A
|
32
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
17.6
16 14.4 |
40
45 41 |
2900
|
0.75
|
2.3
|
33
|
|
32-160(I)
|
32
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
33.2
32 30.2 |
34
40 42 |
2900
|
2.2
|
2.0
|
47
|
|
32-160(I)A
|
32
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
29
28 26.3 |
34
39 39 |
2900
|
1.5
|
2.3
|
43
|
|
32-160(I)B
|
32
|
3.8
5.5 7.2 |
1.06
1.53 2.0 |
25.5
24 22.5 |
34
38 37 |
2900
|
1.1
|
2.3
|
38
|
|
32-200(I)
|
32
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
50.5
50 48 |
26
33 35 |
2900
|
4
|
2.0
|
43
|
|
32-200(I)A
|
32
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
45
44 42 |
26
31 30 |
2900
|
3
|
2.3
|
62
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
40-100
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
13.2
12.5 11.3 |
48
54 53 |
2900
|
0.55
|
2.3
|
32
|
|
40-100A
|
40
|
3.9
5.6 7.4 |
1.08
1.56 2.06 |
10.6
10 9 |
52
|
2900
|
0.37
|
2.3
|
32
|
|
40-125
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
21
20 18 |
41
46 43 |
2900
|
1.1
|
2.3
|
34
|
|
40-125A
|
40
|
3.9
5.6 7.4 |
1.08
1.56 2.06 |
17.6
16 14.4 |
40
45 41 |
2900
|
0.75
|
2.3
|
33
|
|
40-160
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
33
32 30 |
35
40 40 |
2900
|
2.2
|
2.3
|
47
|
|
40-160A
|
40
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
29
28 26.3 |
34
39 39 |
2900
|
1.5
|
2.3
|
43
|
|
40-160B
|
40
|
3.8
5.5 7.2 |
1.06
1.53 2.0 |
25.5
24 22.5 |
34
38 37 |
2900
|
1.1
|
2.3
|
38
|
|
40-200
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
51
50 48 |
26
33 32 |
2900
|
4
|
2.3
|
74
|
|
40-200A
|
40
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
45
44 42 |
26
31 30 |
2900
|
3
|
2.3
|
62
|
|
40-200B
|
40
|
3.7
5.3 7.0 |
1.03
1.47 1.94 |
38
36 34.5 |
29
|
2900
|
2.2
|
2.3
|
52
|
|
40-250
|
40
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
82
80 74 |
24
28 28 |
2900
|
7.5
|
2.3
|
105
|
|
40-250A
|
40
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
72
70 65 |
24
28 27 |
2900
|
5.5
|
2.3
|
98
|
|
40-250B
|
40
|
3.8
5.5 7.0 |
1.06
1.53 1.94 |
61.5
60 56 |
23
27 26 |
2900
|
4
|
2.3
|
77
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
40-100(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
13.2
12.5 11.3 |
55
62 60 |
2900
|
1.1
|
2.3
|
34
|
|
40-100(I)A
|
40
|
8
11 14.5 |
2.22
3.05 4.03 |
10.6
10 9 |
60
|
2900
|
0.75
|
2.3
|
32
|
|
40-125(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.2
20 17.8 |
49
58 57 |
2900
|
1.5
|
2.3
|
38
|
|
40-125(I)A
|
40
|
8
11 14.5 |
2.22
3.05 4.03 |
17
16 14 |
57
|
2900
|
1.1
|
2.3
|
33
|
|
40-160(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
33
32 30 |
45
52 51 |
2900
|
3
|
2.3
|
56
|
|
40-160(I)A
|
40
|
8.2
11.7 15.2 |
2.28
3.25 4.22 |
29
28 26 |
44
51 50 |
2900
|
2.2
|
2.3
|
47
|
|
40-160(I)B
|
40
|
7.3
10.4 13.5 |
2.38
2.89 3.75 |
23
22 20.5 |
50
|
2900
|
1.5
|
2.3
|
43
|
|
40-200(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
51.2
50 48 |
38
46 46 |
2900
|
5.5
|
2.3
|
85
|
|
40-200(I)A
|
40
|
8.3
11.7 15.3 |
2.31
3.25 4.25 |
45.0
44 42 |
37
45 45 |
2900
|
4
|
2.3
|
75
|
|
40-200(I)B
|
40
|
7.5
10.6 13.8 |
2.08
2.94 3.83 |
37
36 34 |
44
|
2900
|
3
|
2.3
|
63
|
|
40-250(I)
|
40
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
81.2
80 77.5 |
31
38 40 |
2900
|
11
|
2.3
|
145
|
|
40-250(I)A
|
40
|
8.2
11.6 15.2 |
2.28
3.22 4.22 |
71.0
70 68 |
38
|
2900
|
7.5
|
2.3
|
95
|
|
40-250(I)B
|
40
|
7.6
10.8 14 |
2.11
3.0 3.89 |
61.4
60 58 |
37
|
2900
|
7.5
|
2.3
|
94
|
|
40-250(I)C
|
40
|
7.1
10.0 13.1 |
1.97
2.78 3.64 |
53.2
52 50.4 |
36
|
2900
|
5.5
|
2.3
|
88
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
50-100
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
13.6
12.5 11.3 |
55
62 60 |
2900
|
1.1
|
2.3
|
36
|
|
50-100A
|
50
|
8
11 14.5 |
2.22
3.05 4.03 |
11
10 9 |
60
|
2900
|
0.75
|
2.3
|
35
|
|
50-125
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.5
20 17.8 |
49
58 57 |
2900
|
1.5
|
2.3
|
43
|
|
50-125A
|
50
|
8
11 14.5 |
2.22
3.05 4.03 |
17
16 14 |
57
|
2900
|
1.1
|
2.3
|
38
|
|
50-160
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
33
32 30 |
45
52 51 |
2900
|
3
|
2.3
|
59
|
|
50-160A
|
50
|
8.2
11.7 15.2 |
2.28
3.25 4.22 |
29
28 26 |
44
51 50 |
2900
|
2.2
|
2.3
|
51
|
|
50-160B
|
50
|
7.3
10.4 13.5 |
2.38
2.89 3.75 |
23
22 20.5 |
50
|
2900
|
1.5
|
2.3
|
47
|
|
50-200
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
52
50 48 |
38
46 46 |
2900
|
5.5
|
2.3
|
101
|
|
50-200A
|
50
|
8.3
11.7 15.3 |
2.31
3.25 4.25 |
45.8
44 42 |
37
45 45 |
2900
|
4
|
2.3
|
80
|
|
50-200B
|
50
|
7.5
10.6 13.8 |
2.08
2.94 3.83 |
37
36 34 |
44
|
2900
|
3
|
2.3
|
68
|
|
50-250
|
50
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
82
80 77.5 |
29
38 40 |
2900
|
11
|
2.3
|
160
|
|
50-250A
|
50
|
8.2
11.6 15.2 |
2.28
3.22 4.22 |
71.5
70 68 |
38
|
2900
|
7.5
|
2.3
|
115
|
|
50-250B
|
50
|
7.6
10.8 14 |
2.11
3.0 3.89 |
61.4
60 58 |
37
|
2900
|
7.5
|
2.3
|
114
|
|
50-250C
|
50
|
7.1
10.0 13.1 |
1.97
2.78 3.64 |
53.2
52 50.4 |
36
|
2900
|
5.5
|
2.3
|
108
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
50-100(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
13.7
12.5 10.5 |
67
69 69 |
2900
|
1.5
|
2.5
|
41
|
|
50-100(I)A
|
50
|
15.6
22.3 29 |
4.3
6.19 8.1 |
11
10 8.4 |
65
67 68 |
2900
|
1.1
|
2.5
|
36
|
|
50-125(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
60
68 67 |
2900
|
3
|
2.5
|
56
|
|
50-125(I)A
|
50
|
15.6
22.3 29 |
4.33
6.19 8.1 |
17
16 13.6 |
58
66 65 |
2900
|
2.2
|
2.5
|
48
|
|
50-160(I)
|
50
|
17.5
25 32.5 |
4.68
6.94 9.03 |
34.4
32 27.5 |
54
63 60 |
2900
|
4
|
2.5
|
72
|
|
50-160(I)A
|
50
|
16.4
23.4 30.4 |
4.56
6.5 8.44 |
30
28 24 |
54
62 59 |
2900
|
4
|
2.5
|
71
|
|
50-160(I)B
|
50
|
15.0
21.6 28 |
4.17
6.0 7.78 |
26
24 20.6 |
58
|
2900
|
3
|
2.5
|
59
|
|
50-200(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
52.7
50 45.5 |
49
58 59 |
2900
|
7.5
|
2.5
|
108
|
|
50-200(I)A
|
50
|
16.4
23.5 30.5 |
4.56
6.53 8.47 |
46.4
44 40 |
48
57 58 |
2900
|
7.5
|
2.5
|
107
|
|
50-200(I)B
|
50
|
15.2
21.8 28.3 |
4.22
6.06 7.86 |
40
38 34.5 |
55
|
2900
|
5.5
|
2.5
|
100
|
|
50-250(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
82
80 76.5 |
39
50 52 |
2900
|
15
|
2.5
|
175
|
|
50-250(I)A
|
50
|
16.4
23.4 30.5 |
4.56
6.5 8.47 |
71.5
70 67 |
39
50 52 |
2900
|
11
|
2.5
|
165
|
|
50-250(I)B
|
50
|
15
21.6 28 |
4.17
6.0 7.78 |
61
60 57.4 |
38
49 54 |
2900
|
11
|
2.5
|
165
|
|
50-315(I)
|
50
|
17.5
25 32.5 |
4.86
6.94 9.03 |
128
125 122 |
30
40 44 |
2900
|
30
|
2.5
|
310
|
|
50-315(I)A
|
50
|
16.6
23.7 31 |
4.61
6.58 8.6 |
115
113 110 |
30
40 44 |
2900
|
22
|
2.5
|
245
|
|
50-315(I)B
|
50
|
15.7
22.5 29.2 |
4.36
6.25 8.0 |
103
101 98 |
39
|
2900
|
18.5
|
2.5
|
215
|
|
50-315(I)C
|
50
|
14.4
20.6 26.8 |
4.0
5.72 7.44 |
86
85 83 |
38
|
2900
|
15
|
2.5
|
195
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
65-100
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
13.7
12.5 10.5 |
67
69 69 |
2900
|
1.5
|
2.5
|
46
|
|
65-100A
|
65
|
15.6
22.3 29 |
4.3
6.19 8.1 |
11
10 8.4 |
65
67 68 |
2900
|
1.1
|
2.5
|
41
|
|
65-125
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
60
68 67 |
2900
|
3
|
2.5
|
58
|
|
65-125A
|
65
|
15.6
22.3 29 |
4.33
6.19 8.1 |
17
16 14.4 |
58
66 65 |
2900
|
2.2
|
2.5
|
49
|
|
65-160
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
34.4
32 27.5 |
54
63 60 |
2900
|
4
|
2.5
|
75
|
|
65-160A
|
65
|
16.4
23.4 30.4 |
4.56
6.5 8.44 |
30
28 24 |
54
62 59 |
2900
|
4
|
2.5
|
75
|
|
65-160B
|
65
|
15.0
21.6 28 |
4.17
6.0 7.78 |
26
24 20.6 |
58
|
2900
|
3
|
2.5
|
63
|
|
65-200
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
52.7
50 45.5 |
49
58 59 |
2900
|
7.5
|
2.5
|
107
|
|
65-200A
|
65
|
16.4
23.5 30.5 |
4.56
6.53 8.47 |
46.4
44 40 |
48
57 58 |
2900
|
7.5
|
2.5
|
107
|
|
65-200B
|
65
|
15.2
21.8 28.3 |
4.22
6.06 7.86 |
40
38 34.5 |
55
|
2900
|
5.5
|
2.5
|
100
|
|
65-250
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
82
80 76.5 |
39
50 52 |
2900
|
15
|
2.5
|
180
|
|
65-250A
|
65
|
16.4
23.4 30.5 |
4.56
6.5 8.47 |
71.5
70 67 |
39
50 52 |
2900
|
11
|
2.5
|
170
|
|
65-250B
|
65
|
15
21.6 28 |
4.17
6.0 7.78 |
61
60 57.4 |
38
49 54 |
2900
|
11
|
2.5
|
170
|
|
65-315
|
65
|
17.5
25 32.5 |
4.86
6.94 9.03 |
127
125 122 |
32
40 44 |
2900
|
30
|
2.5
|
320
|
|
65-315A
|
65
|
16.6
23.7 31 |
4.61
6.58 8.6 |
115
113 110 |
32
40 44 |
2900
|
22
|
2.5
|
255
|
|
65-315B
|
65
|
15.7
22.5 29.2 |
4.36
6.25 8.0 |
103
101 98 |
39
|
2900
|
18.5
|
2.5
|
225
|
|
65-315C
|
65
|
14.4
20.6 26.8 |
4.0
5.72 7.44 |
86
85 83 |
38
|
2900
|
15
|
2.5
|
205
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
65-100(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
13.8
12.5 10 |
67
73 70 |
2900
|
3
|
3.0
|
63
|
|
65-100(I)A
|
65
|
31.3
44.7 58 |
8.7
12.4 16.1 |
11
10 8 |
66
72 69 |
2900
|
2.2
|
3.0
|
53
|
|
65-125(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
22
20 17 |
67
72.5 70 |
2900
|
5.5
|
3.0
|
99
|
|
65-125(I)A
|
65
|
31.3
44.7 58 |
8.7
12.5 16.1 |
17.5
16 13.6 |
66
71 69 |
2900
|
4
|
3.0
|
78
|
|
65-160(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
35
32 28 |
63
71 70 |
2900
|
7.5
|
3.0
|
103
|
|
65-160(I)A
|
65
|
32.7
46.7 61 |
9.1
13.0 16.9 |
30.6
28 24 |
62
70 69 |
2900
|
7.5
|
3.0
|
103
|
|
65-160(I)B
|
65
|
30.3
43.3 56.3 |
8.4
12.0 15.6 |
26
24 21 |
69
|
2900
|
5.5
|
3.0
|
97
|
|
65-200(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
53.5
50 46 |
55
67 68 |
2900
|
15
|
3.0
|
176
|
|
65-200(I)A
|
65
|
32.8
47 61 |
9.1
13.1 16.9 |
47
44 40 |
54
66 67 |
2900
|
11
|
3.0
|
166
|
|
65-200(I)B
|
65
|
30.5
43.5 56.6 |
8.5
12.1 15.7 |
40.6
38 33.4 |
65
|
2900
|
7.5
|
3.0
|
114
|
|
65-250(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
83
80 72 |
52
59 60 |
2900
|
22
|
3.0
|
235
|
|
65-250(I)A
|
65
|
32.5
46.7 61 |
9.0
13.0 16.9 |
73
70 63 |
52
59 60 |
2900
|
18.5
|
3.0
|
205
|
|
65-250(I)B
|
65
|
30
43.3 56 |
8.3
12.0 15.6 |
62
60 54 |
58
|
2900
|
15
|
3.0
|
180
|
|
65-315(I)
|
65
|
35
50 65 |
9.72
13.9 18.1 |
128
125 121 |
44
54 57 |
2900
|
37
|
3.0
|
350
|
|
65-315(I)A
|
65
|
32.5
46.5 60.5 |
9.0
12.9 16.8 |
112.6
110 106.4 |
43
54 57 |
2900
|
30
|
3.0
|
335
|
|
65-315(I)B
|
65
|
31
44.5 58 |
8.6
12.4 16.1 |
102.5
100 98 |
53
|
2900
|
30
|
3.0
|
335
|
|
65-315(I)C
|
65
|
29
41 53.6 |
8.1
11.4 14.9 |
87
85 83 |
51
|
2900
|
22
|
3.0
|
270
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
80-100
|
80
|
35
50 65 |
9.72
13.9 18.1 |
13.8
12.5 10 |
67
73 70 |
2900
|
3
|
3.0
|
63
|
|
80-100A
|
80
|
31.3
44.7 58 |
8.7
12.5 16.1 |
11
10 8 |
66
72 69 |
2900
|
2.2
|
3.0
|
54
|
|
80-125
|
80
|
35
50 65 |
9.72
13.9 18.1 |
22
20 17 |
67
72.5 70 |
2900
|
5.5
|
3.0
|
99
|
|
80-125A
|
80
|
31.3
45 58 |
8.7
12.5 16.1 |
17.5
16 13.6 |
66
71 69 |
2900
|
4
|
3.0
|
79
|
|
80-160
|
80
|
35
50 65 |
9.72
13.9 18.1 |
35
32 28 |
63
71 70 |
2900
|
7.5
|
3.0
|
105
|
|
80-160A
|
80
|
32.7
46.7 61 |
9.1
13.0 16.9 |
30.6
28 24 |
62
70 69 |
2900
|
7.5
|
3.0
|
105
|
|
80-160B
|
80
|
30.3
43.3 56.3 |
8.4
12.0 15.6 |
26
24 21 |
69
|
2900
|
5.5
|
3.0
|
98
|
|
80-200
|
80
|
35
50 65 |
9.72
13.9 18.1 |
53.5
50 46 |
55
67 68 |
2900
|
15
|
3.0
|
175
|
|
80-200A
|
80
|
32.8
47 61 |
9.1
13.1 16.9 |
47
44 40 |
54
66 67 |
2900
|
11
|
3.0
|
165
|
|
80-200B
|
80
|
30.5
43.5 56.6 |
8.5
12.1 15.7 |
40.6
38 33.4 |
65
|
2900
|
7.5
|
3.0
|
115
|
|
80-250
|
80
|
35
50 65 |
9.72
13.9 18.1 |
83
80 72 |
52
59 60 |
2900
|
22
|
3.0
|
240
|
|
80-250A
|
80
|
32.5
46.7 61 |
9.0
13.0 16.9 |
73
70 63 |
52
59 60 |
2900
|
18.5
|
3.0
|
210
|
|
80-250B
|
80
|
30
43.3 56 |
8.3
12.0 15.6 |
62
60 54 |
58
|
2900
|
15
|
3.0
|
185
|
|
80-315
|
80
|
35
50 65 |
9.72
13.9 18.1 |
128
125 122 |
43
54 57 |
2900
|
37
|
3.0
|
355
|
|
80-315A
|
80
|
32.5
46.5 60.5 |
9.0
12.9 16.8 |
112.6
110 107.4 |
43
54 57 |
2900
|
30
|
3.0
|
340
|
|
80-315B
|
80
|
31
44.5 58 |
8.6
12.4 16.1 |
102.5
100 98 |
53
|
2900
|
30
|
3.0
|
340
|
|
80-315C
|
80
|
29
41 53.6 |
8.1
11.4 14.9 |
98
85 83 |
51
|
2900
|
22
|
3.0
|
275
|
|
80-350
|
80
|
35
50 65 |
9.72
13.9 18.1 |
146
150 142 |
55
66 67 |
2900
|
55
|
3.0
|
570
|
|
80-350A
|
80
|
31
44.5 58 |
8.6
12.4 16.1 |
138.4
142 134.8 |
65
|
2900
|
45
|
3.0
|
470
|
|
80-350B
|
80
|
29
41 53.6 |
8.1
11.4 14.9 |
131.4
135 127.8 |
63
|
2900
|
37
|
3.0
|
440
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
80-100(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
13.6
12.5 11 |
66
76 75 |
2900
|
5.5
|
4.5
|
108
|
|
80-100(I)A
|
80
|
62.6
89 116 |
17.4
24.7 32.2 |
11
10 8.8 |
64
74 74 |
2900
|
4
|
4.5
|
87
|
|
80-125(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
23.5
20 14 |
70
76 65 |
2900
|
11
|
4.5
|
163
|
|
80-125(I)A
|
80
|
62.6
89 116 |
17.4
24.7 32.2 |
19
16 11 |
68
74 65 |
2900
|
7.5
|
4.5
|
113
|
|
80-160(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
36.5
32 24 |
70
76 65 |
2900
|
15
|
4.5
|
184
|
|
80-160(I)A
|
80
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
32
28 21 |
68
74 67 |
2900
|
11
|
4.5
|
174
|
|
80-160(I)B
|
80
|
60.6
86.6 112.5 |
16.8
24.1 31.3 |
72
24 18 |
72
|
2900
|
11
|
4.5
|
174
|
|
80-200(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
54
50 42 |
65
74 73 |
2900
|
22
|
4.0
|
251
|
|
80-200(I)A
|
80
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
47.5
44 37 |
64
73 72 |
2900
|
18.5
|
4.0
|
220
|
|
80-200(I)B
|
80
|
61
87 113 |
16.9
24.2 31.4 |
41
38 32 |
71
|
2900
|
15
|
4.0
|
198
|
|
80-250(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
87
80 68 |
62
69 68 |
2900
|
37
|
4.0
|
330
|
|
80-250(I)A
|
80
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
76
70 59.5 |
61
68 67 |
2900
|
30
|
4.0
|
315
|
|
80-250(I)B
|
80
|
61
87 113 |
16.9
24.2 31.4 |
65
60 51 |
66
|
2900
|
30
|
4.0
|
315
|
|
80-315(I)
|
80
|
70
100 130 |
19.4
27.8 36.1 |
132
125 114 |
55
66 67 |
2900
|
75
|
4.0
|
675
|
|
80-315(I)A
|
80
|
66.5
95 123.6 |
18.5
26.4 34.3 |
119
113 103 |
55
66 67 |
2900
|
55
|
4.0
|
535
|
|
80-315(I)B
|
80
|
63
90 117 |
17.5
25 32.5 |
106.6
101 92 |
65
|
2900
|
45
|
4.0
|
420
|
|
80-315(I)C
|
80
|
58
82 107 |
16.1
22.8 29.7 |
90
85 76 |
63
|
2900
|
37
|
4.0
|
366
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
100-100
|
100
|
70
100 130 |
19.4
27.8 36.1 |
13.6
12.5 11 |
66
76 75 |
2900
|
5.5
|
4.5
|
113
|
|
100-100A
|
100
|
62.6
89 116 |
17.4
47 32.2 |
11
10 8.8 |
64
74 74 |
2900
|
4
|
4.5
|
91
|
|
100-125
|
100
|
70
100 130 |
19.4
27.8 36.1 |
23.5
20 14 |
70
76 65 |
2900
|
11
|
4.5
|
169
|
|
100-125A
|
100
|
62.6
89 116 |
17.4
24.7 32.2 |
19
16 11 |
68
74 63 |
2900
|
7.5
|
4.5
|
118
|
|
100-160
|
100
|
70
100 130 |
19.4
27.8 36.1 |
36.5
32 24 |
70
76 65 |
2900
|
15
|
4.5
|
191
|
|
100-160A
|
100
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
32
28 21 |
68
74 67 |
2900
|
11
|
4.5
|
181
|
|
100-160B
|
100
|
60.6
86.6 112.5 |
16.8
24.1 31.3 |
27
24 18 |
72
|
2900
|
11
|
4.5
|
181
|
|
100-200
|
100
|
70
100 130 |
19.4
27.8 36.1 |
54
50 42 |
65
74 73 |
2900
|
22
|
4.0
|
245
|
|
100-200A
|
100
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
47.5
44 37 |
64
73 72 |
2900
|
18.5
|
4.0
|
215
|
|
100-200B
|
100
|
61
87 113 |
16.9
24.2 31.4 |
41
38 32 |
71
|
2900
|
15
|
4.0
|
193
|
|
100-250
|
100
|
70
100 130 |
19.4
27.8 36.1 |
37
80 68 |
62
69 68 |
2900
|
37
|
4.0
|
345
|
|
100-250A
|
100
|
65.4
93.5 121.6 |
18.2
26.0 33.8 |
76
70 59.5 |
61
68 67 |
2900
|
30
|
4.0
|
330
|
|
100-250B
|
100
|
61
87 113 |
16.9
24.2 31.4 |
65
60 51 |
66
|
2900
|
30
|
4.0
|
330
|
|
100-315
|
100
|
70
100 130 |
19.4
27.8 36.1 |
132
125 114 |
55
66 67 |
2900
|
75
|
4.0
|
689
|
|
100-315A
|
100
|
66.5
95 123.6 |
18.5
26.4 34.3 |
119
113 103 |
65
66 67 |
2900
|
55
|
4.0
|
549
|
|
100-315B
|
100
|
63
90 117 |
17.5
25 32.5 |
106.6
101 92 |
65
|
2900
|
45
|
4.0
|
439
|
|
100-315C
|
100
|
58
82 107 |
16.1
22.8 29.7 |
90
85 76 |
63
|
2900
|
37
|
4.0
|
385
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
100-100(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
14
12.5 10 |
64
73 70 |
2900
|
11
|
4.5
|
115
|
|
100-125(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
24
20 14 |
62
74 69 |
2900
|
15
|
4.5
|
168
|
|
100-125(I)A
|
100
|
84
140 168 |
23.3
39 46.7 |
20
17 12 |
64
72 68 |
2900
|
11
|
4.5
|
168
|
|
100-160(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
36
32 27 |
69
79 75 |
2900
|
22
|
5.6
|
210
|
|
100-160(I)A
|
100
|
84
140 168 |
23.3
39 46.7 |
32
28 23.5 |
66
76 72 |
2900
|
18.5
|
5.0
|
210
|
|
100-200(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
53
50 45 |
69
79 78 |
2900
|
37
|
5.2
|
402
|
|
100-200(I)A
|
100
|
84
140 168 |
23.3
39 46.7 |
48
45 40 |
64
74 73 |
2900
|
30
|
4.5
|
395
|
|
100-200(I)B
|
100
|
60
100 120 |
16.7
27.8 33.3 |
43
40 36 |
72
|
2900
|
22
|
4.5
|
360
|
|
100-250(I)
|
100
|
96
160 192 |
26.7
44.4 53.3 |
83
80 72 |
65
77 74 |
2900
|
55
|
4.8
|
560
|
|
100-250(I)A
|
100
|
84
140 168 |
23.3
39 46.7 |
75
72 65 |
60
72 69 |
2900
|
45
|
4.5
|
420
|
|
100-250(I)B
|
100
|
60
100 120 |
16.7
27.8 33.3 |
68
65 58 |
70
|
2900
|
37
|
4.5
|
400
|
|
100-350
|
100
|
60
100 120 |
16.7
27.8 33.3 |
153.6
150 142 |
72
57 74 |
2900
|
90
|
4.0
|
950
|
|
100-350A
|
100
|
61
87 113 |
16.9
24.2 31.4 |
145.6
142 134 |
75
|
2900
|
75
|
4.0
|
830
|
|
100-350B
|
100
|
58
82 107 |
16.1
22.8 29.7 |
138.6
135 127 |
75
|
2900
|
55
|
4.0
|
600
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
125-100
|
125
|
96
160 192 |
26.7
44.4 53.3 |
13
12.5 12 |
82
|
2900
|
11
|
4.0
|
180
|
|
125-100A
|
125
|
86
143 172 |
23.9
39.7 47.8 |
10.4
10 9.6 |
77
|
2900
|
7.5
|
4.0
|
125
|
|
125-125
|
125
|
96
160 192 |
26.7
44.4 53.3 |
22.6
20 17 |
80
|
2900
|
15
|
4.0
|
220
|
|
125-125A
|
125
|
86
143 172 |
23.9
39.7 47.8 |
18
16 13.6 |
77
|
2900
|
11
|
4.0
|
210
|
|
125-160
|
125
|
96
160 192 |
26.7
44.4 53.3 |
36
32 28 |
78
|
2900
|
22
|
4.0
|
265
|
|
125-160A
|
125
|
90
150 180 |
25
41.7 50 |
31.5
28 24.5 |
76
|
2900
|
18.5
|
4.0
|
230
|
|
125-160B
|
125
|
83
138 166 |
21.7
38.3 46.1 |
27
24 21 |
73
|
2900
|
15
|
4.0
|
215
|
|
125-200
|
125
|
96
160 192 |
26.7
44.4 53.3 |
55
50 46 |
77
|
2900
|
37
|
5.5
|
395
|
|
125-200A
|
125
|
90
150 180 |
25
41.7 50 |
48.4
44 40.5 |
76
|
2900
|
30
|
5.5
|
380
|
|
125-200B
|
125
|
83
138 166 |
21.7
38.3 46.1 |
41.3
37.5 34.5 |
75
|
2900
|
22
|
5.5
|
320
|
|
125-250
|
125
|
96
160 192 |
26.7
44.4 53.3 |
87
80 73 |
75
|
2900
|
55
|
5.0
|
580
|
|
125-250A
|
125
|
90
150 180 |
25
41.7 50 |
76
70 84 |
74
|
2900
|
45
|
5.5
|
490
|
|
125-250B
|
125
|
83
138 166 |
21.7
38.3 46.1 |
65
60 55 |
73
|
2900
|
37
|
5.5
|
430
|
|
125-315
|
125
|
96
160 192 |
26.7
44.7 53.3 |
133
125 119 |
70
|
2900
|
90
|
5.0
|
790
|
|
125-315A
|
125
|
90
150 180 |
25
41.7 50 |
117
110 104.6 |
70
|
2900
|
75
|
5.0
|
710
|
|
125-315B
|
125
|
86
143 172 |
23.9
39.7 47.8 |
106.4
100 95.2 |
69
|
2900
|
75
|
5.0
|
705
|
|
125-315C
|
125
|
80.5
134 161 |
22.4
37.2 44.7 |
96
88 86 |
67
|
2900
|
55
|
5.0
|
585
|
|
Model
|
Outlet/Inlet Diameter
|
Flow Rate
|
Head
|
Efficiency
|
Speed
|
Motor Power
|
Required NPSH
|
Weight
|
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
(NPSH)r
|
Kg
|
|
|
150-125
|
150
|
96
160 192 |
26.7
44.4 53.3 |
22.6
24 17 |
66
76 76 |
2900
|
11
|
4.0
|
210
|
|
150-125A
|
150
|
90
150 180 |
25
41.7 50 |
18
16 13.6 |
77
|
2900
|
7.5
|
4.0
|
130
|
|
150-160
|
150
|
96
160 192 |
26.7
44.4 53.3 |
36
32 27 |
75
|
2900
|
22
|
4.0
|
270
|
|
150-160A
|
150
|
90
150 180 |
25
41.7 50 |
32
28 23.5 |
76
|
2900
|
18.5
|
4.0
|
230
|
|
150-160B
|
150
|
84
140 168 |
23.3
39 46.7 |
27
24 21 |
73
|
2900
|
15
|
4.0
|
220
|
|
150-200
|
150
|
96
160 192 |
26.7
44.4 53.3 |
55
50 46 |
77
|
2900
|
37
|
5.5
|
395
|
|
150-200A
|
150
|
90
150 180 |
25
41.7 50 |
48.4
44 40.5 |
76
|
2900
|
30
|
5.5
|
380
|
|
150-200B
|
150
|
84
140 168 |
23.3
39 46.7 |
41
38 34 |
75
|
2900
|
22
|
4.0
|
275
|
|
150-250
|
150
|
140
200 260 |
38.9
55.6 72.2 |
87
80 73 |
75
|
2900
|
75
|
5.0
|
630
|
|
150-250A
|
150
|
131
187 243 |
36.4
51.9 67.5 |
76
70 84 |
74
|
2900
|
55
|
5.5
|
530
|
|
150-250B
|
150
|
121
173 225 |
33.5
48.1 62.5 |
65
60 55 |
73
|
2900
|
45
|
5.5
|
480
|
|
150-315
|
150
|
140
200 260 |
38.9
55.6 72.2 |
133
125 119 |
70
|
2900
|
110
|
5.0
|
1080
|
|
150-315A
|
150
|
131
187 243 |
36.4
51.9 67.5 |
117
110 104.6 |
70
|
2900
|
90
|
5.0
|
820
|
|
150-315B
|
150
|
121
173 225 |
33.5
48.1 62.5 |
106.4
100 95.2 |
69
|
2900
|
75
|
5.0
|
770
|
|
150-315C
|
150
|
112
160 208 |
31.3
44.4 57.8 |
96
88 86 |
67
|
2900
|
55
|
5.0
|
640
|
|
150-350
|
150
|
96
160 192 |
26.7
44.4 53.3 |
153.6
150 142.8 |
80
|
2900
|
110
|
5.5
|
970
|
|
150-350A
|
150
|
90
150 180 |
25
41.7 50 |
145.6
142 134.8 |
70
|
2900
|
90
|
5.2
|
790
|
|
150-350B
|
150
|
84
140 168 |
23.3
39 46.7 |
138.6
135 127.8 |
65
76 74 |
2900
|
75
|
5.5
|
705
|
Operating Manual
1. Operation & Running
-
Check Fasteners: Before installation, inspect the pump for any foreign objects blocking the flow passage and ensure all fasteners are securely tightened to prevent damage to the impeller or pump body during operation.
-
Pipe Support: The weight of the pipes should not be supported directly by the pump. Use independent support for the pipes to avoid deformation of the pump and potential performance and service life issues.
-
Install Filter: Install a filter with an area 3–4 times larger than the suction pipe cross-section before the pump inlet to prevent impurities from entering and clogging the flow passage.
-
Hot Water Applications: When the pump is used for hot water, to prevent the pump from bearing thermal deformation stress, the pump base bolts can remain unfixed. This allows the pump to move with the piping during thermal expansion and contraction.
2. Maintenance & Care
-
Regular Monitoring and Records: Regularly record changes in supply voltage and voltage imbalance. Overvoltage, undervoltage, or three-phase voltage imbalance can cause overheating or other abnormalities in the motor.
-
Load and Temperature Monitoring: Keep track of the load current and temperature rise of the pump. Any excessive increase in current could indicate failure, causing motor overheating.
-
Fluid Temperature Records: Regularly record the liquid temperature in the pipeline to ensure it is below or equal to the temperature specified on the nameplate, preventing the pump from running in an over-temperature state and reducing motor lifespan.
-
Leakage Check: Check the pressure gauge readings at both the inlet and outlet regularly. The inlet pressure must never be below zero, and the pressure difference between the inlet and outlet must match the values specified on the nameplate.
-
Air Venting and Filtration: Before each use, vent the pump. During long-term operation, vent it at least once a week. Regularly check the filtration system to ensure it is not clogged.
3. Pump Start-up & Operation
-
Water Filling and Venting: Ensure the pump chamber is fully filled with liquid before starting. Open the inlet valve, and the top vent valve of the motor. Close the vent valve after the liquid flows out.
-
Throttle Control: Close the outlet valve to reduce starting current. Check if all components are functioning normally.
-
Start Motor: Connect the power supply and confirm the correct direction of rotation.
-
Adjust Outlet Valve: Gradually open the outlet valve to bring the pump into operation within its rated performance range.
-
Monitor for Abnormalities: If any abnormal conditions arise during operation, stop the pump immediately for inspection.
4. Stopping and Long-Term Storage
-
Stop Pump and Disconnect Power: Close the discharge valve, cut off the power supply, and stop the motor.
-
Empty Pump for Long Storage: If the pump will be out of service for an extended period, drain all liquid from the pump and clean it. Store it in a dry place to prevent freezing and other damage.
Precautions：
Regularly check and measure the gap between the graphite bearing and the shaft sleeve to ensure uniform clearance between the stator shield sleeve and the rotor shield sleeve, ensuring reliable operation. Generally, the standards in the following table serve as the limit; if the measurements exceed the specified range, repair or replacement should be performed.
|
Outer diameter of the shaft sleeve(mm)
|
wear limit clearance(mm)
|
standard clearance(mm)
|
|
>18~30
|
0.40
|
0.131
|
|
>30~50
|
0.45
|
0.158
|
|
>50~80
|
0.50
|
0.192
|
OEM & Custom
We offer OEM/ODM customization, including materials (stainless steel, bronze, cast iron), voltage (220V/415V/460V), and explosion-proof configurations. Optional VFD control systems and flange standards (DIN/ANSI/JIS) are available. All pumps are ISO9001 and CE certified for export markets.
FAQs
- Q: What’s the main advantage of the PBG pump?
A: Completely leak-free operation due to shielded motor structure and integrated design. - Q: What liquids can the PBG pump handle?
A: Clean water, hot water, or mild chemical liquids similar to water. - Q: What’s the maximum working temperature?
A: Up to 160°C for hot water models. - Q: Is it suitable for quiet environments?
A: Yes, the ultra-low vibration design makes it ideal for basements and HVAC systems. - Q: What’s the typical flow and head range?
A: Flow 6.3–108 m³/h; head 12.5–125 m. - Q: Do you offer OEM services?
A: Yes, private label, packaging, and performance customization are supported. - Q: Which regions use this pump?
A: Widely used in Southeast Asia, Middle East, Africa, and South America for industrial and building systems.
