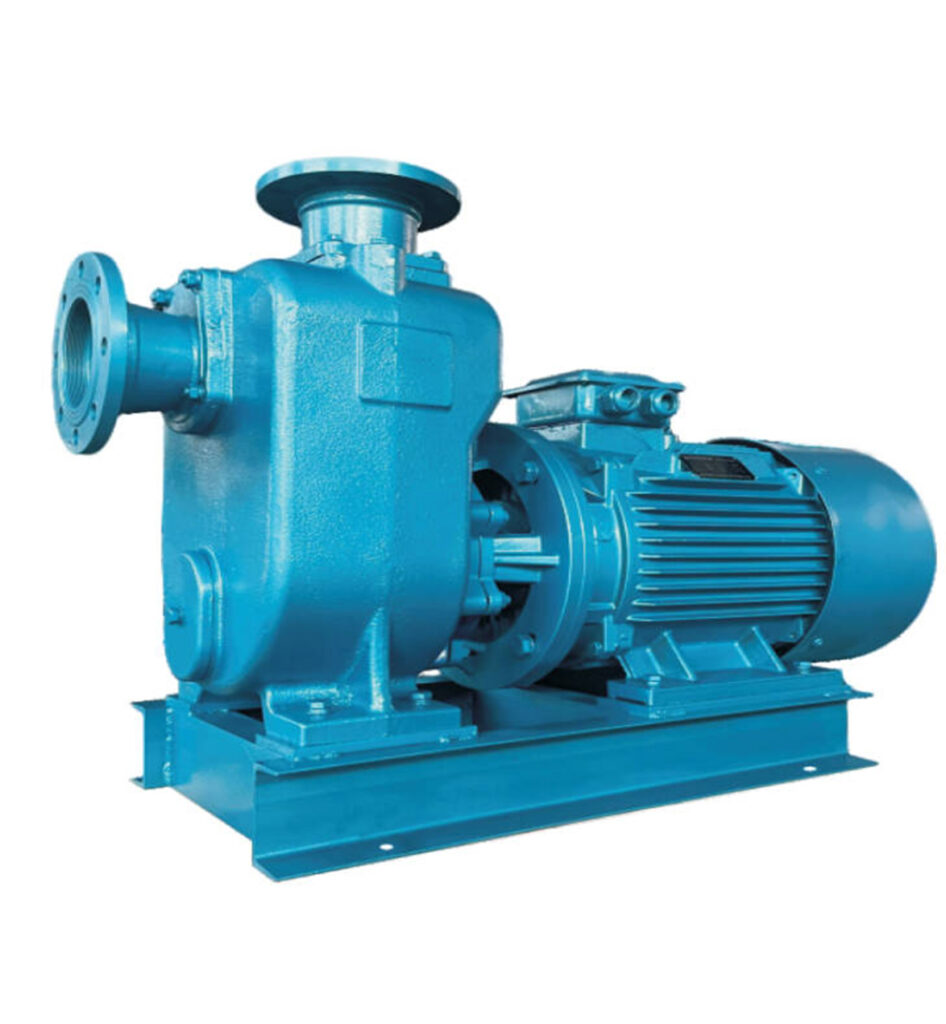

ZX/ZXL Clean Water Self-Priming Pump
Technical Documentation
1. Product Overview
ZX/ZXL Clean Water Self-Priming Pump is a professional industrial pump designed for demanding applications. This technical documentation provides comprehensive information about specifications, installation, operation, and maintenance.
2. Key Features
- Advanced hydraulic design for optimal efficiency
- Robust construction for long service life
- Easy maintenance and serviceability
- Compliance with international standards
- Wide range of configurations available
3. Technical Specifications
| Parameter | Range | Unit |
|---|---|---|
| Flow Rate | Based on model | m³/h |
| Head | Based on model | m |
| Power | Based on model | kW |
| Speed | 1450/2900 | r/min |
| Efficiency | Up to 85 | % |
4. Applications
Typical applications include:
- Industrial water supply and circulation
- HVAC systems
- Building services
- Process applications
- Municipal water systems
5. Installation Guidelines
- Prepare foundation according to specifications
- Position pump and align with driver
- Connect suction and discharge piping
- Install electrical connections
- Prime pump before starting
- Perform initial start-up checks
6. Operation
6.1 Start-Up Procedure
- Check all connections are tight
- Verify rotation direction
- Fill pump with liquid
- Open suction valve
- Start motor
- Gradually open discharge valve
6.2 Operating Parameters
| Parameter | Normal Range | Alert |
|---|---|---|
| Bearing Temperature | <75°C | >80°C |
| Vibration | <2.8 mm/s | >4.5 mm/s |
| Motor Current | ≤ FLA | >105% FLA |
7. Maintenance
7.1 Daily Checks
- Monitor vibration and noise
- Check bearing temperatures
- Inspect for leaks
- Verify pressure readings
7.2 Regular Maintenance
- Lubricate bearings every 500 hours
- Inspect mechanical seal quarterly
- Check alignment annually
- Replace worn components as needed
8. Troubleshooting
| Problem | Cause | Solution |
|---|---|---|
| No flow | No prime | Prime pump |
| Low head | Worn impeller | Replace impeller |
| High vibration | Misalignment | Realign |
| Seal leak | Seal wear | Replace seal |
9. Safety
⚠️ Important Safety Notes:
- Always lock out power before maintenance
- Release all pressure before disassembly
- Allow pump to cool before service
- Use proper lifting equipment
- Wear appropriate PPE
10. Technical Support
Shanghai Chaodun Machinery Manufacturing Group Co., Ltd. provides comprehensive technical support including pump selection, installation guidance, operation training, and maintenance support.
Website: https://cd-pump.com
Quality Certifications: ISO9001, CE
Warranty: 12 months from commissioning or 18 months from shipment
